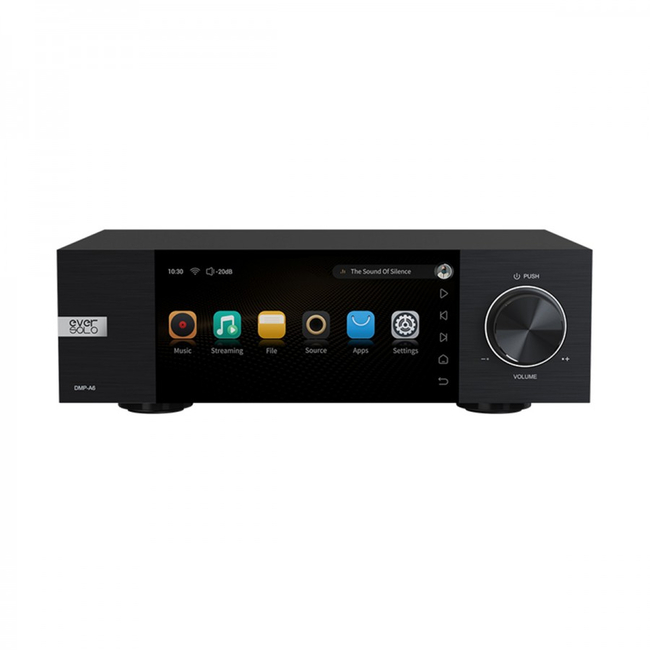

Eversolo DMP-A6 Streamer
Η Eversolo παρουσιάζει με το DMP-A6 ένα streamer τόσο ισχυρό όσο και διαισθητικό και κομψό. Θα σας επιτρέψει να μεταδώσετε τη μουσική σας με ευκολία απολαμβάνοντας εξαιρετική ποιότητα ήχου, όλα ελεγχόμενα μέσω μιας υψηλής ποιότητας οθόνης LCD και μιας εργονομικής διεπαφής ή από μια αποκλειστική εφαρμογή για κινητά.
Υποστήριξη μετά την πώληση
Εγγύηση προμηθευτή έωςέτη
Δίπλα σας από το 1976
Πάνω από 46 χρόνια εμπειρίας!
Γίνετε μέλος μας
Κερδίστε ειδικές προσφορές
Two ES9038 Q2M DAC chips
The audio decoding of the DMP-A6 is entrusted to two ESS ES9038 Q2M DAC chips, a high-performance model widely recognized by audiophiles. It also supports high-resolution audio streams up to PCM 32bit 768kHz and DSD512, as well as decoding of MQA files.
LCD Touch Screen
The high-definition 6" LCD touch screen perfectly integrated into the aluminum chassis of the DMP-A6 allows practical and ergonomic use. The user experience is intended to be as intuitive as possible. Thus, it is possible to access all player options and information through this beautiful interface.
High speed SSD support
The DMP-A6 is equipped with an integrated memory 4GB DDR + 32GB eMMC to be able to use many applications.
A slot compatible with a 4TB M.2 NVME 2280 SSD is provided for installation without removing the cover and allowing you to store your music locally and access it extremely quickly. In addition, the use of an SSD rather than a hard disk makes it possible to reduce the temperature and the vibrations of the device.
SSD are available as accessories, or by directly following this link: CRUCIAL SSD hard drive.
Low noise switching power supply module
The DMP-A6 features a low-noise power supply module, several capacitors reduce interference. In addition, the filter circuit is specially designed for AC current input and reduces high frequency noise from 100KHz to 5MHz ensuring continuous power, smoother background noise and clearer musical details.
A complete connectivity
Particularly versatile, the DMP-A6 covers a large majority of integration needs thanks to complete connectivity.
1 | Antenna #1 |
2 | Antenna #2 |
3 | Antenna #3 |
4 | Coaxial input |
5 | Coaxial output |
6 | Stereo balanced RCA output |
7 | Power switch |
8 | Power plug |
9 | Ethernet port RJ45 |
10 | HDMI Output (Adio/DSD) |
11 | USB-A Outputs |
12 | Optical Toslink input |
13 | USB-C Input |
14 | Optical Toslink Output |
15 | Stereo balanced XLR output |
Multichannel DSD HDMI DOH Chip
Equipped with DOH processing chips for HDMI, the DMP-A6 can transcribe a DSD master sound signal with high HDMI clock precision.
XMOS 316 & Dual Clock
The DMP-A6 is equipped with a third-generation XMOS 316 USB interface ensuring perfect reception and decoding of the USB audio stream. This supports audio streams up to PCM 32bit 768kHz, DSD up to DSD512 and MQA. For optical ports (Coaxial and Toslink), they support DSD 64 (DoP) and PCM 192 24Bit.
The DMP-A6's circuitry also uses two high-precision clock oscillators to effectively eliminate jitter and ensure accurate and transparent audio reproduction.
MQA Decoder
The DMP-A6 incorporates an MQA (Master Quality Authenticated) decoder, allowing you to play this type of file and enjoy sound quality as close as possible to the original studio recording. In addition, MQA streams are light enough to be streamed.
Bluetooth 5.0
The Bluetooth 5.0 reception of the DMP-A6 uses a Qualcomm QCC5125 chip. This supports the SBC, AAC, aptX, aptX LL, aptX HD and LDAC high-definition transmission codecs, allowing you to enjoy high-quality sound reproduction via Bluetooth.
A balanced pre-amp circuit
The DMP-A6 is equipped with balanced analog circuitry from the DAC chip to the stereo XLR and RCA outputs. This limits noise and channel separation provides better signal quality.
Compatible with most music streaming services
It incorporates many music services such as; Tidal, Qobuz, HighRes Audio Amazon music. It is also compatible with third-party applications such as; Apple music, Spotify, Deezer, Napster, KKbox and supports Roon Ready feature.
Little extras that make the difference: filters, VU meters and aluminum chassis
The DMP-A6's DAC settings offer 7 filters applicable to your music listening preferences. In addition, custom VU meters are available for on-screen display itself built into a sturdy, modern-looking aluminum chassis.
Smart control app
The DMP-A6 can be controlled from a smartphone or tablet using the free Eversolo Controller mobile app. This will allow you to simply access your music while enjoying a remote interface for easy use from your sofa.
Eversolo DMP-A6 review by Audio Science Review (Amir)
" The DMP-A6 gives you a ton of functionality from streaming to gorgeous display. Performance is still provably transparent so I am not worries. Build quality seems excellent and would be fitting in products costing thousands of dollars. I am happy yo to add the Eversolo DMP-A6 to my recommended list. "
Technical characteristics
Product type | Streamer |
Touch screen | LCD 6" |
CPU | ARM Cortex-A55 (Quad-core) |
Internal memory | 4Go DDR + 32Go eMMC Support SSD M.2 NVME 3.0 until 4 Tb (not included) |
DAC Chip | 2x ES9038 Q2M |
Audio decoding | PCM : 32bit 768kHz DSD : DSD512 MQA |
USB Interface | XU316 (3rd generation) |
HDMI decoding chip | 2x DOH chips |
Bluetooth Chips | Qualcomm QCC5125 Bluetooth 5.0 |
AOP Chips | OPA1642 |
Connectivity | |
---|---|
WiFi | Dual-band 2.4G+5G |
Ethernet | RJ45 (10/100/1000Mbps) |
Input USB port | USB-C 3.0 Systeme compatibility : Windows (7, 10), Mac, Android, IOS Audio compatibility :Stereo DSD512, PCM 768KHz 32Bit, MQA |
Output audio HDMI | Multi-channel : DSD64 Native Raw Multi-channel : PCM 192KHz |
Input Bluetooth 5.0 | QCC5125 Chip Supported Codecs : SBC, AAC, aptX, aptX LL, aptX HD, LDAC |
Digital audio inputs | Bluetooth 1x USB-C 1x Coaxial 1x Optical Toslink |
Digital audio outputs | Bluetooth 1x Coaxial 1x Optical Toslink 1x HDMI 2x USB-A |
Analog audio outputs | 1* unbalanced stereo RCA 1* balanced stereo XLR |
Integrated music services | Tidal, Qobuz, Highresaudio, Amazon, WebDAV, UPnP |
Compatible streaming services | Air Play, DLNA, Roon Ready, Spotify, Tidal Connect, Qobuz Connect etc. |
Supported network protocol | NFS / SMB v1-v2-V3 / UPnP |
Mesurements | |
---|---|
Balanced XLR output | Output level: 5.2V Frequency Response: 20Hz~20KHz(±0.15dB) Dynamic range: > 128dB SNR: >128dB THD+N: <0.00009%(-120dB) @A-wt Crosstalk: >-125dB |
Unbalanced RCA output | Output level: 2.6V Frequency response: 20Hz~20KHz (±0.2dB) Dynamic range: > 124dB SNR: >124dB THD+N: <0.00011%(-119dB)@A-WT Crosstalk: >-124dB |
General | |
---|---|
Power supply | 110-240V AC 50/60Hz |
Rated Power | 13W |
Dimensions (L*P*H) | 180*270*90mm |
Color | Black |
Package | 1* EVERSOLO DMP-A6 1* Power cable 1* USB cable 1* Screwdriver 1* User manual |
