Functional overview

*New chipset RTD1619BPD Quad-core 64bit high-performance processor.

*HDMI® 2.1 4k 60Hz point-to-point output, HDR（HDR10/HLG/HDR10+/Dolby Vision)

*12Bit, BT2020 wide color range, YCbCr 4:4:4 color space, truehd audio passthrough.

*VS10 engine maps content to approximate Dolby Vision colours for significant image quality improvements.

*upport SATA (3.5/2.5) hard drive up to 16T; Support external BD/DVD(unencrypted), CD discs.

*Home Theater 4.0 with custom categories and management, movie trailers and soundtrack playback.

*Lossless music playback DSD (SACD ISO, DSF, DFF), WAV, APE, DTS, etc.

*Newly upgraded Music Player supports lossless playback and decoding, personalized setting and tracks data association matching.

*support multiple ways of music streaming, such as DLNA，etc.

*Android 11 OS has improved the system performance and stability greatly.

*More accurate HDR10 static metadata (MaxFall,MaxCll) processing, highlights and shadows display with stark contrast.

*Support HDR10+ dynamic metadata processing, images colors and brightness levels could be obtained accurately frame by frame and scene by scene.

*Advanced Dolby Vision technology supports LLDV (Player Led) and Standard mode (TV Led) output.

*Automatic frame rate 23.976 and resolution ensures smooth movie playback without interruption.

*Support BD/BD3D/UHD full Blu-ray menu and complex MPLS structure Blu-ray seamless branching playback.

*Support 3D video formats including MVC 3D (Blu-ray/MKV)

*Support special effect subtitles, download subtitles online and exclusively support Blu-ray and MKV forced subtitles.

*Support network protocols like NFS, SMB v1/v2/v3, UPnP, Web DAV, and built-in SMB services.

*Support standard WOL, two optional modes Power On mode and Standby mode.

*Integrate to smart home smoothly with HDMI® CEC, RS232 and Control 4.

*ZIDOO Controller APP (IOS and Android) controls media player easily.

Specs

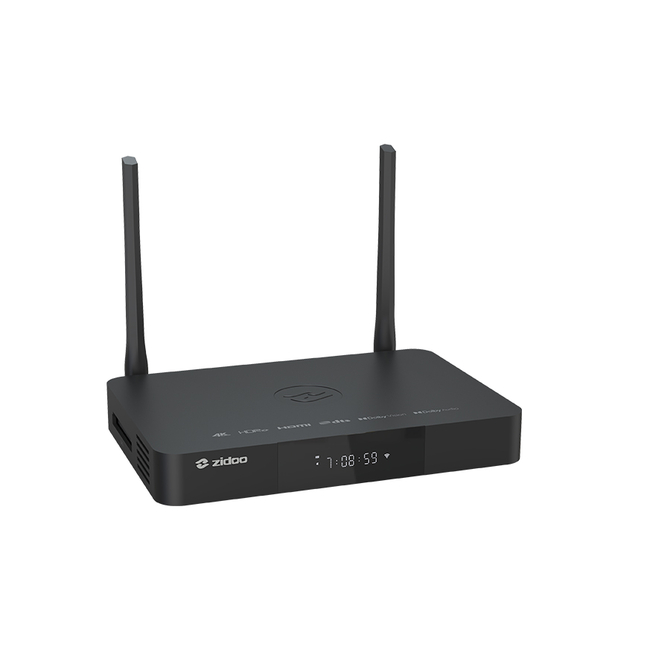

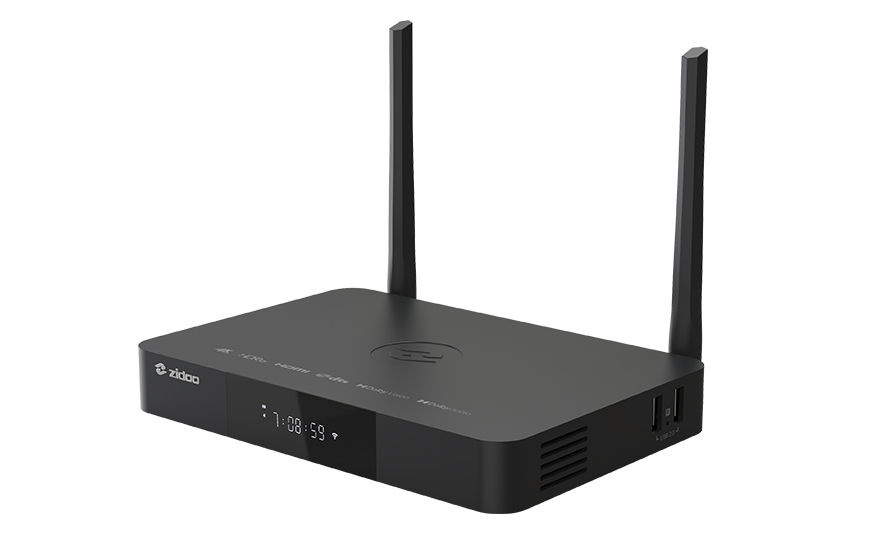

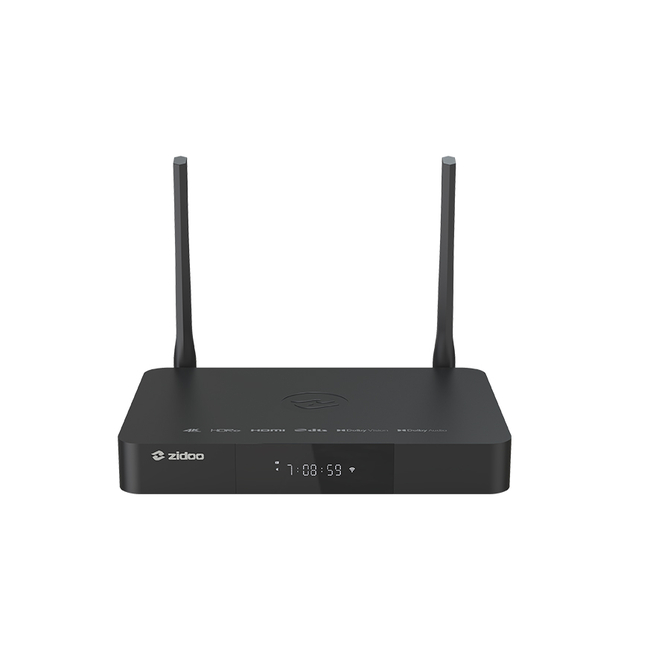

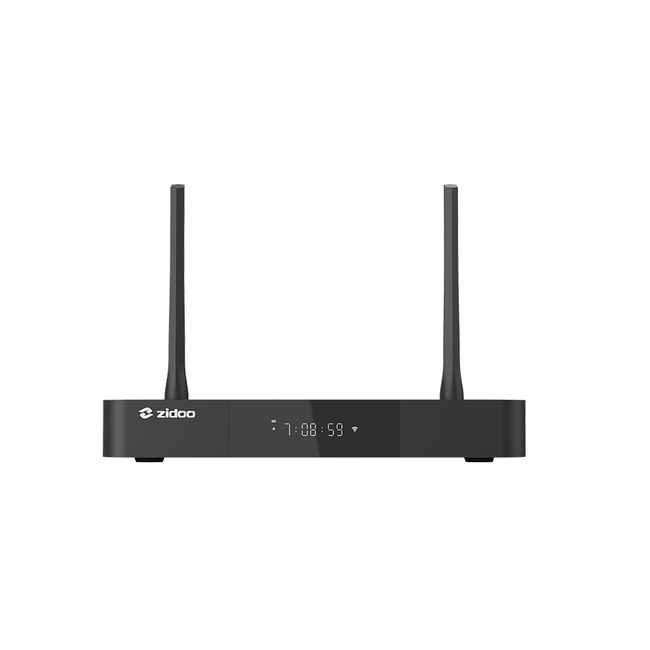

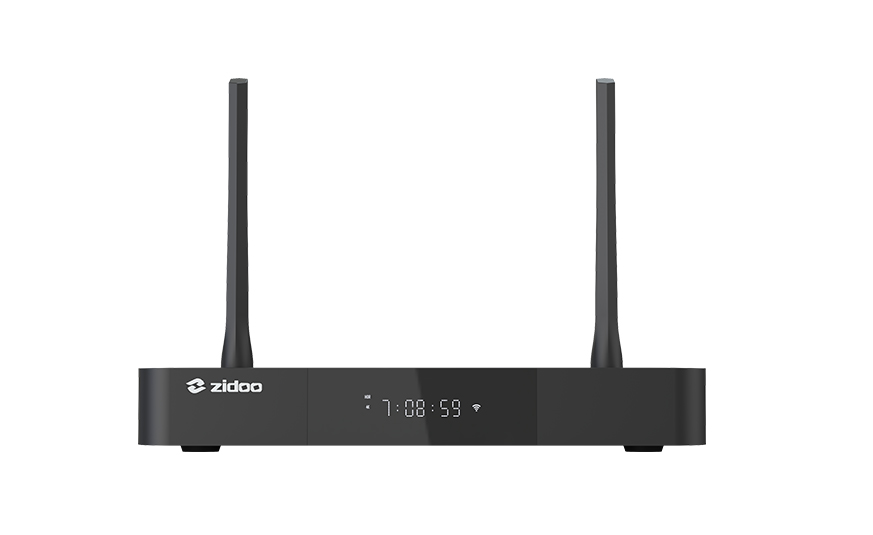

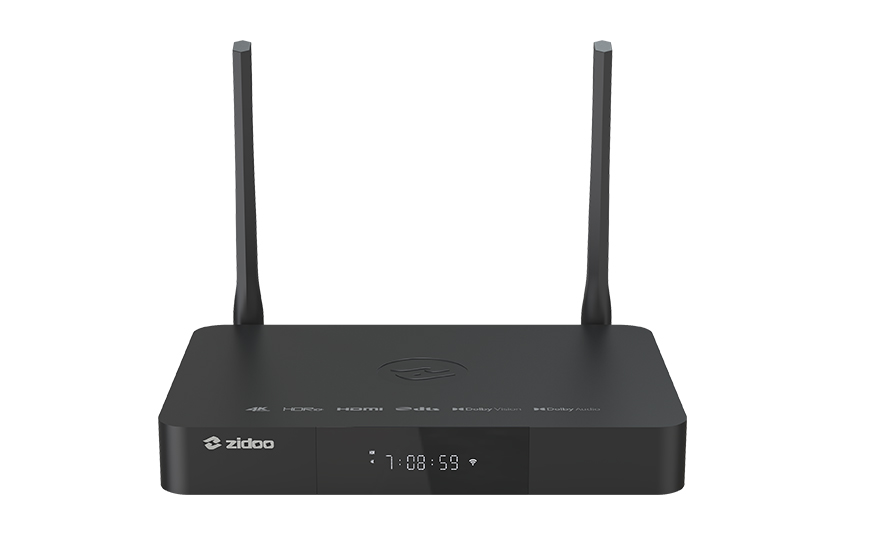

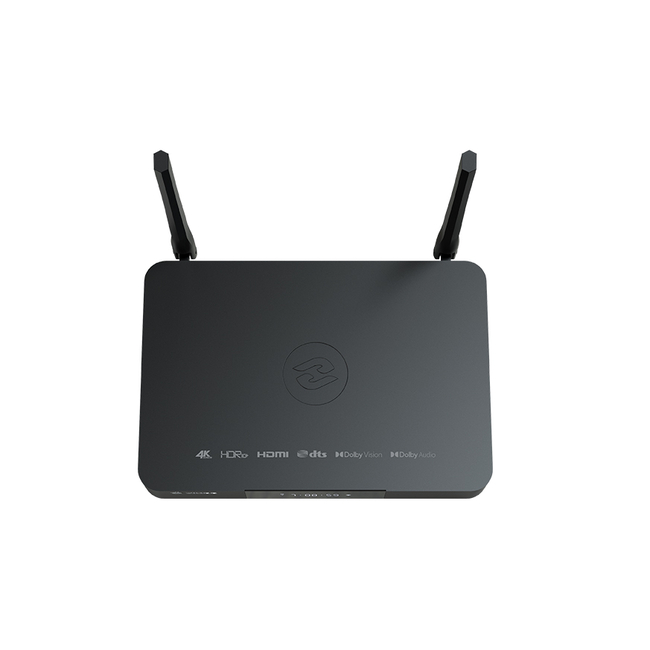

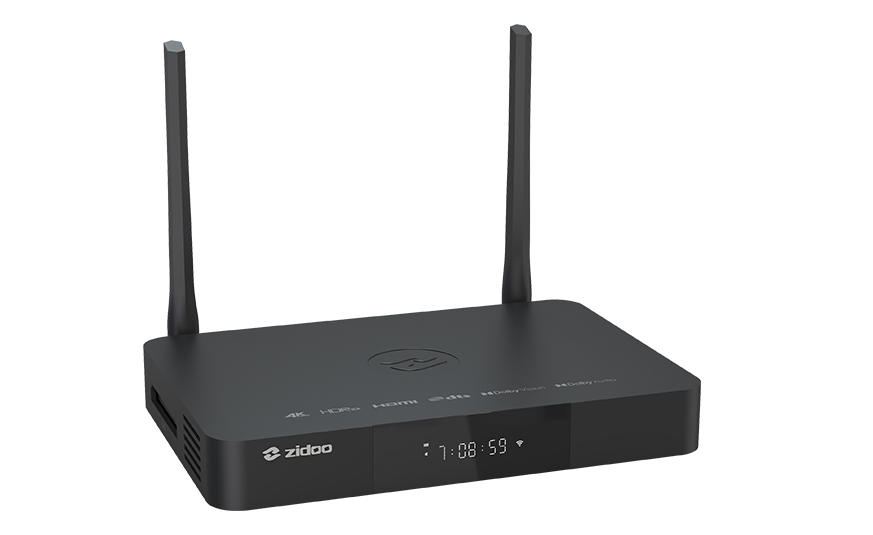

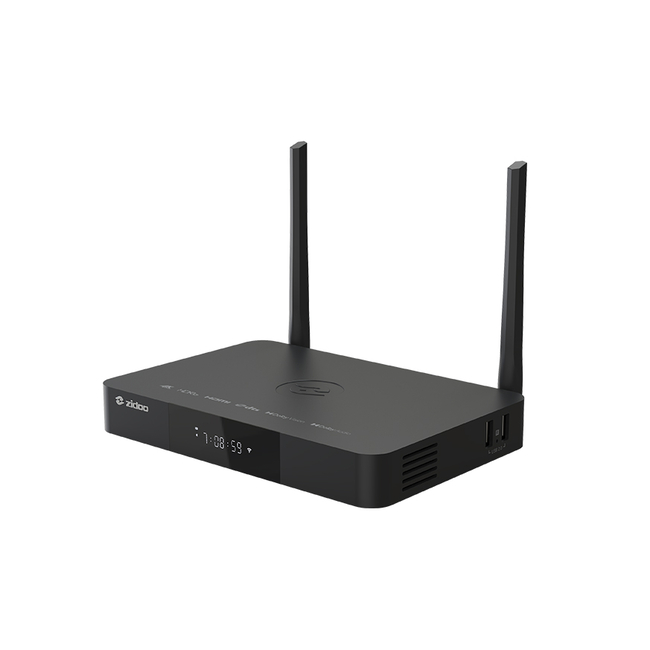

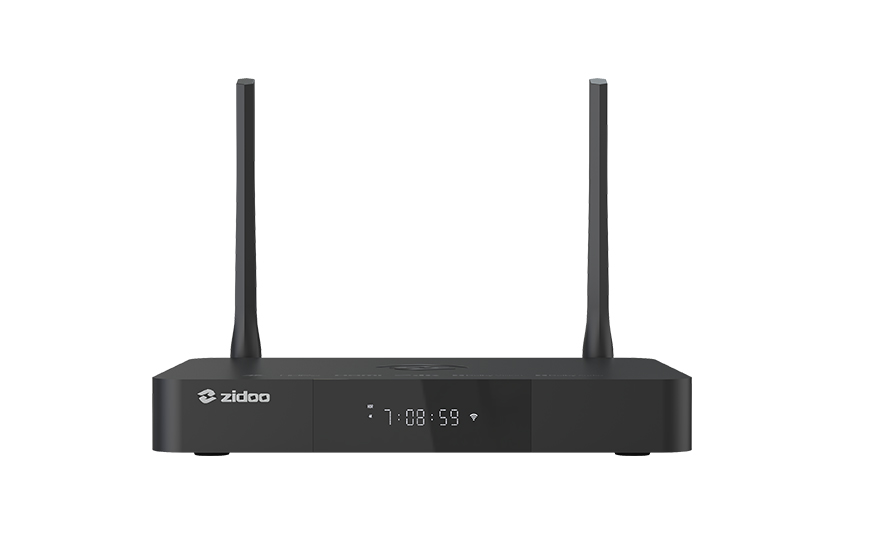

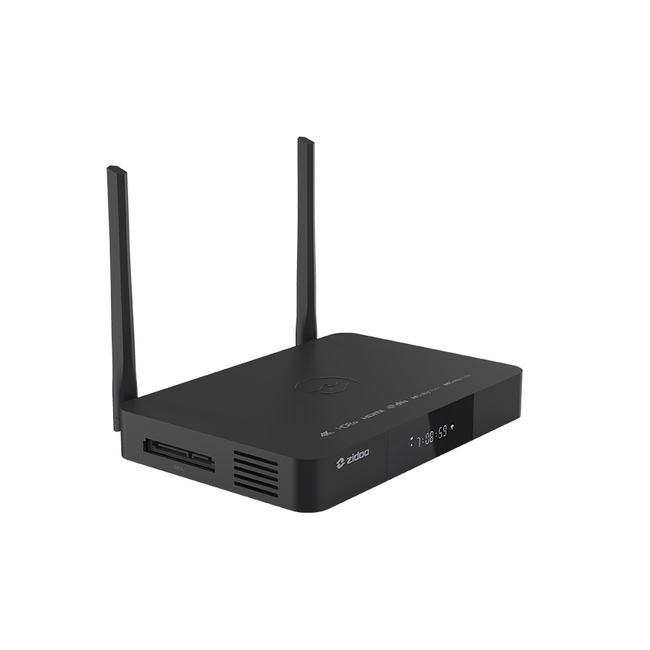

Model Z9X PRO

Display Screen: LED

Chassis: Aluminum alloy

OS: Android 11

CPU: Realtek RTD1619BPD ARM Quad-A55

GPU: ARM Mali-G57

RAM: 4GB DDR4

Internal Storage: 32GB eMMC

Bluetooth: BT 5.2

WiFi: 2.4G + 5G dual-band WiFi, 802.11 a/b/g/n/AC/AX 2T2R , 802.11ax MIMO OFDM

Ethernet: RJ-45 Ethernet jack (10/100/1000Mbps) * 1

HDMI Output: HDMI 2.1, support up to 4K @ 60p, HDR, 12Bit, YCbCr 4:4:4 color space, support audio pass-through

Video Decoding: 4K@60p HEVC/H.265 12Bit HDR10, HDR10+, Dolby vision

Audio Decoding: Support truehd audio pass-through and LPCM 2.0 channel

Intelligent Control: APP control, RS-232, TCP/IP control(WOL)

Power Supply: DC 12V 2A

SATA: SATA 3.0 * 1

USB: USB 3.0 * 1 USB 2.0 * 2

Other Interface: 3.5mm AV OUT * 1 SPDIF(2CH,5.1CH) * 1 3.5mm RS232 * 1 External high-gain antenna * 2

Accessories: Remote control * 1 Power adapter * 1 SATA cable *1 User manual * 1

• Manufacturer : Zidoo
• Supplier Code : AVH.VID.00010
