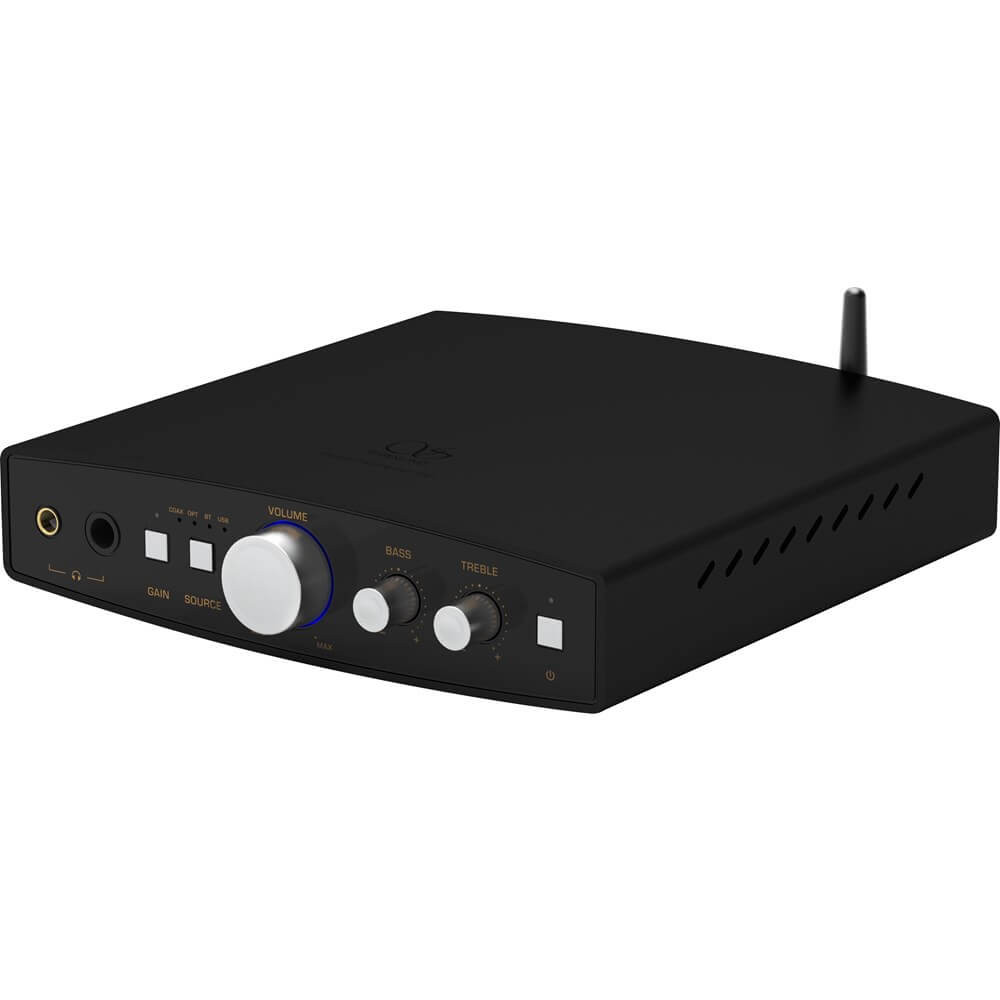

Shanling EH2 (R2R) - Black (6972835392831)
Με τον EH2, η Shanling παρουσιάζει ένα desktop DAC και ενισχυτή ακουστικών που προορίζεται να αποτελέσει τον διάδοχο του Shanling HE1. Αυτή η εξέλιξη ενσωματώνει ψηφιακή/αναλογική μετατροπή μέσω ενός δικτύου αντιστάσεων σκάλας R2R που αναπτύχθηκε απευθείας στο εσωτερικό της μάρκας, προκειμένου να προσεγγίσει την ηχητική απόδοση του τσιπ PCM1704. Ως αποτέλεσμα, αυτό το DAC μπορεί να επεξεργαστεί σήματα έως PCM 32bit 768kHz και DSD512. Το στάδιο ενίσχυσης βασίζεται σε τρανζίστορ και προσφέρει ισχύ εξόδου 4351mW @ 32 ohms.
Υποστηρίζουμε αγορές με δόσεις με χρήση χρεωστικής κάρτας. Για λεπτομέρειες καλέστε μας τηλέφωνο
Υποστήριξη μετά την πώληση
Εγγύηση προμηθευτή έωςέτη
Δίπλα σας από το 1976
Πάνω από 46 χρόνια εμπειρίας!
Γίνετε μέλος μας
Κερδίστε ειδικές προσφορές
Shanling EH2 DAC R2R Headphone Amplifier Transistors Bluetooth 5.2 32bit 768kHz DSD512 Black
With the EH2, Shanling presents a desktop DAC and headphone amplifier that's intended to be the successor to the Shanling HE1. This evolution incorporates digital/analog conversion via an R2R ladder resistor network developed directly in-house by the brand, in order to approach the sound rendering of the PCM1704 chip. As a result, this DAC can process signals up to PCM 32bit 768kHz and DSD512. The amplification stage is based on transistors and offers an output power of 4.32W at 32Ω.
Shanling EH2: R2R DAC
For its EH2, Shanling decided to develop its own custom DAC. The R2R 24bit DAC takes its inspiration from the legendary PCM1704 DAC chip, enabling digital-to-analog conversion of signals up to PCM 32bit 768kHz and DSD512, while offering sound reproduction with a characteristic analog tone. Furthermore, a NOS mode is also available, allowing you to enjoy your tracks as close to the original as possible.
Shanling EH2: Transistor amplification
The HE02's amplifier stage relies on BD139 and BD140 transistors for an output power of 4.32W into 32Ω for the balanced headphone output and 1.28W into 32Ω for the Single-ended headphone output. Furthermore, the line output is also equipped with an OPA 1612 to provide an output level of 4.5V balanced and 2.2V single-ended.
Shanling EH2: Extended connectivity
The EH2 also offers more extensive connectivity than its predecessor. It features a Toslink optical input, a coaxial input and a USB-C input. The latter is equipped with an XMOS XU316 interface that supports signals up to PCM 32bit 768kHz and DSD512. Furthermore, the EH2 features Bluetooth 5.2 connectivity thanks to Qualcomm's QCC5125 chip, allowing you to connect wirelessly while maintaining excellent quality thanks to support for LDAC, aptX, aptX HD and aptX Adaptive high-definition codecs.
Specification:
Dimensions: 156 X 150 X 36.5mm
Weight: 713g
Hi-Res Support USB: 768 kHz/32 bit, DSD 512

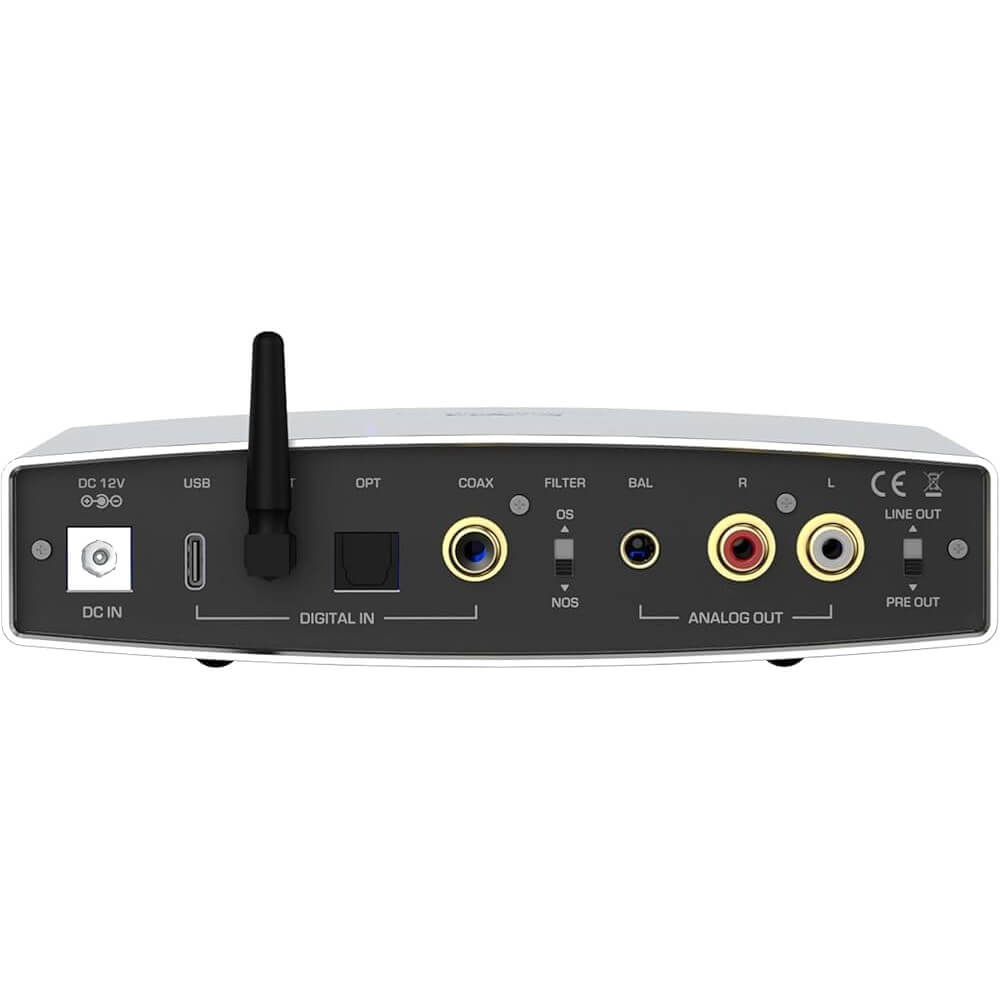

Inputs: USB-C, Coaxial, Optical, Bluetooth
Outputs: 6.35mm & 4.4mm Headphone output, RCA & 4.4mm Line Output
4.4mm Headphone Output
Output power:
Low gain: 2365mW @ 32 ohms
High gain: 4351mW @ 32 ohms
Frequency response: 20HZ-40KHZ (-0.5dB)
THD + N: 0.02% @ 32 ohms
Dynamic Range: 118DB @ 32 ohms
Channel separation: 111dB @ 32 ohms
Signal to noise ratio: 118DB @ 32 ohms
Output Impedance: <2 Ohm
6.35mm Headphone Output
Output power:
Low gain: 632mW @ 32 ohms
High gain: 1280mW @ 32 ohms
RCA / 4.4mm Line Out
Output power: 2.2V / 4.5V
Frequency response: 20HZ-40KHZ (-0.5dB)
THD + N: 0.02%
Signal to noise ratio: 119DB
