UHF B210 DSP Solo

Use the new UHF B210 DSP bodypacks to reproduce the musicality of your instruments and turn wireless into wired!

We've added a new, high performing Digital Signal Processor (DSP) to manage the frequencies in all our wireless systems.

DSP technology gives greater wireless stability and precision, practically matching the type of sound quality you would expect from a wired system. Relish the uncompromising sound balance when you sing or play in wireless.

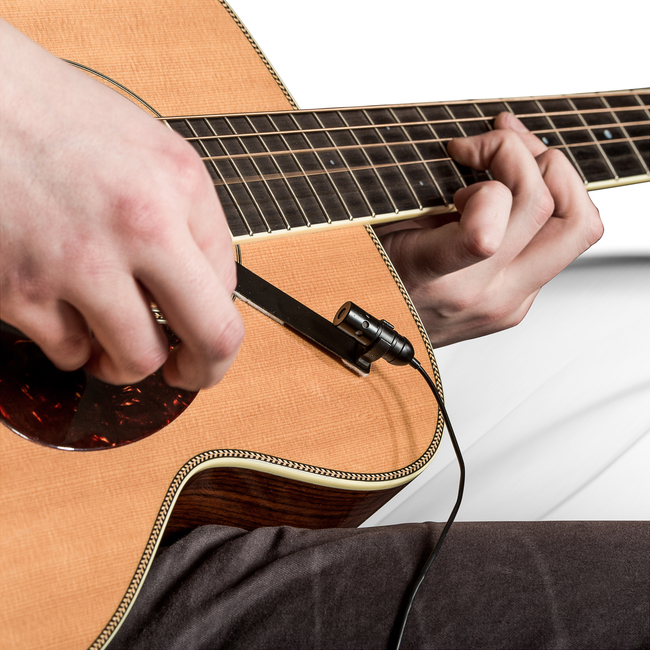

Instrument mic for acoustic guitars and ukuleles GL21 Lanen :

• Excellent natural sound.

• Very high acceptable sound pressure level (140 dB).

• UHF compatible.

• Easy mounting.

• Lightweight rubber clamp specific to the instrument.

• Very high level of protection from instrument vibration.

• Mini XLR to XLR connector adaptor ensures that the mic lead is properly positioned on your instrument (48V phantom power supply required for wired connection).

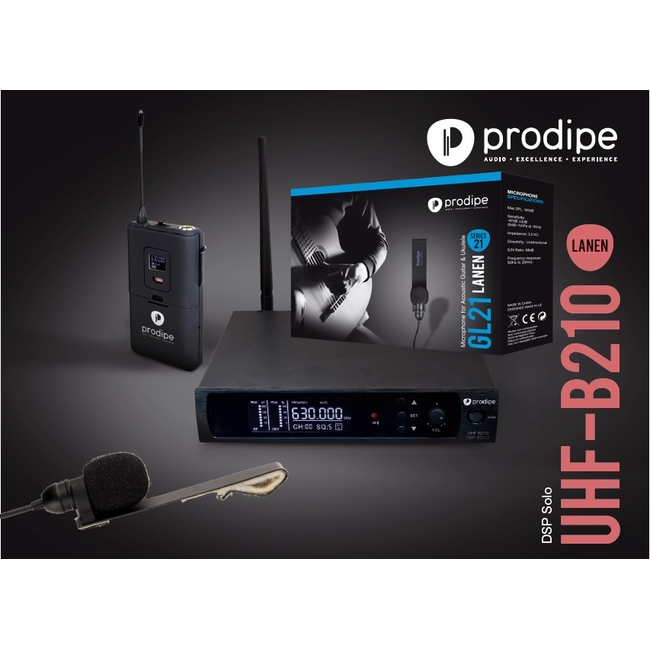

This pack consists of following elements:

• A UHF B210 DSP SOLO wireless system

• An instrument mic GL21 Acoustic guitar & ukull

Specifications:

GL21 Sax & Brass mic:

• Kind of microphone : Condenser

• Directivity : Cardioid

• Output impedance : 2.2 KΩ

• Sensitivity : -47dB 3dB (0dB=1V/Pa at 1KHz)

• Pression max. SPL : 140dB

• Signal - noise : 68dB

• Frequency response : 50Hz - 20KHz

System - principal fonctions:

• Transmission type: UHF

• Bandwith: 630 - 680MHz

• Frequencies: 2 x 100

• Dynamic: >90dB

• Harmonic distorsion: <0.1%

• Frequency response: 30Hz at 20KHz

• Range: 60 M

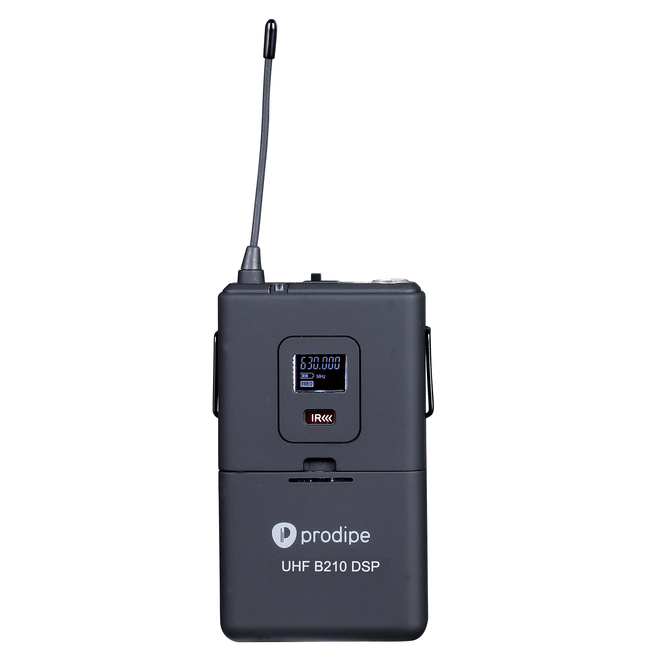

System - Transmitter :

• Power: 10mW

• Modulation: FM

• Sensitivity: RX < -94dBm

• Power source: LR6 (AA) 1.5V 2 (approx. 8h)

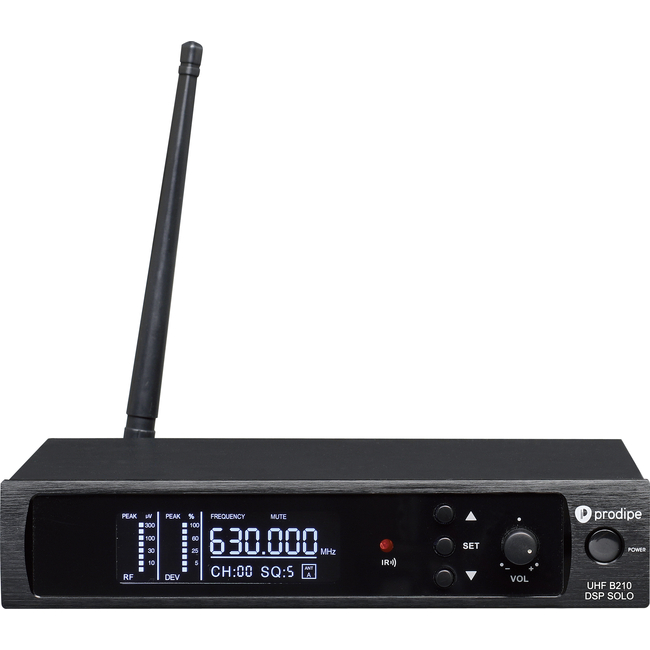

System - Receiver:

• Power supply: AC100~240V (50-60Hz)

• Voltage: 12V S/N RATIO >96dB

• Unbalanced audio output: 1 x Jack 6.35 mm

• Balanced audio output: 1 x XLR

• Manufacturer : Prodipe
• Supplier Code : APA2018-24352
