SHANLING ONIX ZENITH XDA20 DAC
Με το ONIX Zenith XDA20, η Shanling παρουσιάζει έναν υψηλής ποιότητας DAC και ενισχυτή ακουστικών, συνδυάζοντας πολυτελές σχεδιασμό με εξαρτήματα τελευταίας τεχνολογίας. Χρησιμοποιεί δύο τσιπ DAC ES9039Pro σε συνδυασμό με μια εσωτερικά αναπτυγμένη αρχιτεκτονική I/V για μετατροπή ψηφιακού σε αναλογικό σήμα σπάνιας ποιότητας, ικανή να χειριστεί δεδομένα έως 32-bit 768kHz PCM και DSD512. Το στάδιο του ενισχυτή βασίζεται σε ένα τσιπ TPA6120, για ομαλή αναπαραγωγή ήχου και ισχύ έως 1620mW στα 32Ω. Ολόκληρη η μονάδα είναι τοποθετημένη σε ένα εντυπωσιακό περίβλημα από αλουμίνιο κατεργασμένο με CNC, με την χαρακτηριστική μαύρη και χρυσή αισθητική της σειράς ONIX.
We support installment purchases using a debit card. For details call us Phone
After Sales Support
Supplier guarantee up toYears
Next to you since 1976
Over 46 years of experience!
Join us
Earn special offers
Shanling ONIX Zenith XDA20: Cutting-edge technology
The heart of the XDA20 is based on a dual ESS ES9039Pro chip, capable of processing PCM streams up to 32-bit/768kHz and DSD512 files with exemplary precision. This dual DAC chip is supported by a proprietary ‘Brighton’ I/V architecture developed in-house by Shanling, using 8 OPA1611s to ensure rich, detailed sound reproduction with an expansive soundstage and impressive dynamics.
Amplification is handled by a TPA6120 chip, renowned for its ability to deliver smooth, controlled sound, even on demanding headphones. The XDA20 can deliver up to 1620mW at 32Ω, with a comfortable power reserve.
The unit is powered by a silent, high-quality power supply section based on two Talema transformers (25W and 15W), supported by four 3300uF / 63V capacitors, for stable, noise-free regulation.
Shanling ONIX Zenith XDA20: Complete and flexible connectivity
Designed to fit into any type of setup, the Zenith XDA20 offers three distinct output modes: Pre-out, Line-out and headphone amplification, which can be easily selected depending on use. It features a particularly rich set of digital connections, including a USB-B input, an I2S input via HDMI, a coaxial RCA, an optical Toslink, as well as BNC and AES/EBU connectors. On the output side, it offers single-ended RCA and balanced XLR connections on the rear panel, while the front panel receives a 6.35 mm jack headphone output, ensuring great versatility for both headphone listening and integration into a larger hi-fi system.
Shanling ONIX Zenith XDA20: As stylish as it is ergonomic

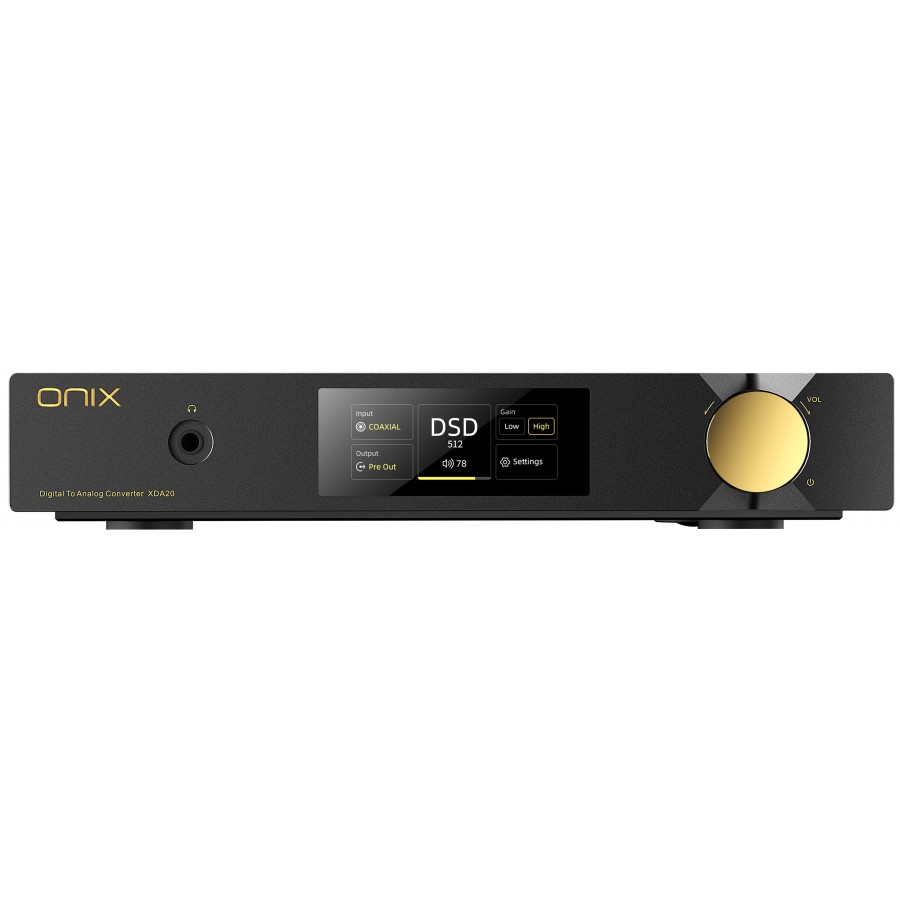

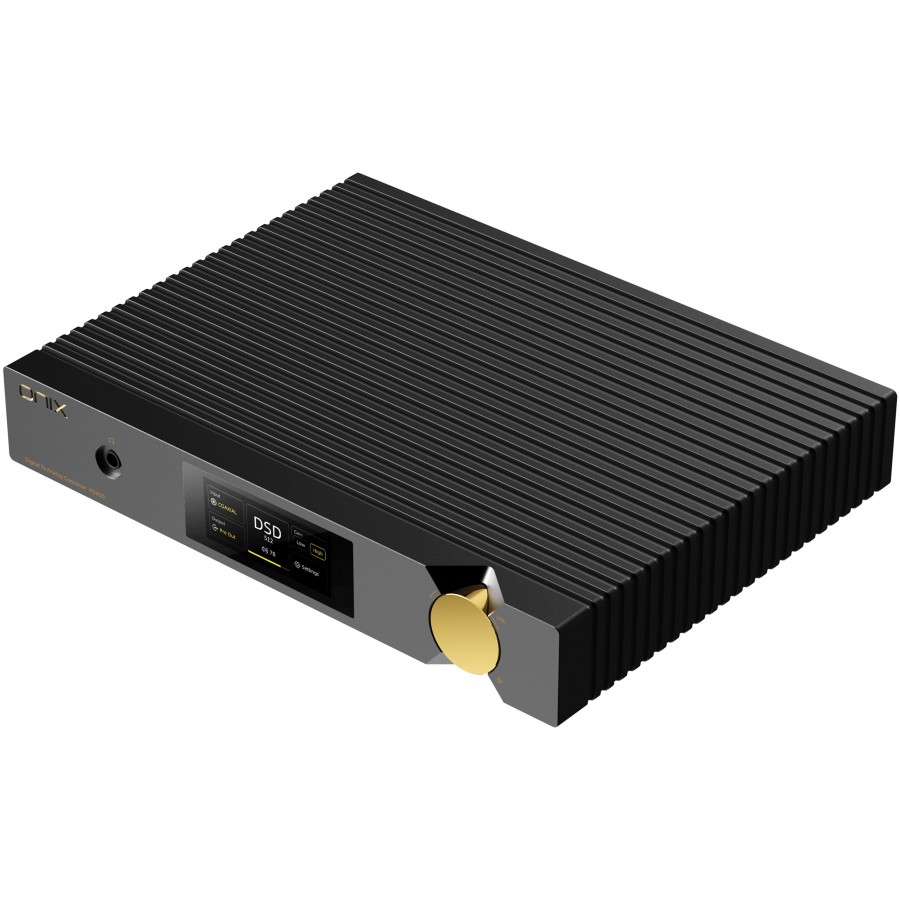

The Zenith XDA20 features a robust and elegant CNC aluminium chassis, echoing the distinctive black and gold design of the ONIX series. The sleek front panel houses a 3.4-inch colour touchscreen, complemented by a navigation wheel for smooth and intuitive operation. A remote control is also provided for wireless control.
Shanling ONIX Zenith XDA20: I2S pinout
Technical characteristics
SpecificationsProduct typeDAC
Headphone amplifierInputs1x I2S via HDMI
1x USB-B
1x Coaxial
1x Optical Toslink
1x BNC
1x AES/EBUOutputs1x Balanced stereo XLR
1x Single-ended stereo RCA
1x Headphone output Jack 6.35mmDAC chips2x ES9039ProUSB interfaceXMOS XU316Supported sampling ratesSPDIF input: PCM up to 24bit 194kHz, DSD64 DOP
I2S input: PCM up to 32bit 768kHz, Native DSD up to DSD512
USB input: PCM up to 32bit 768kHz, Native DSD up to DSD512Amplification chipTPA6120Screen3.4" touchscreenRCA output specificationsOutput level2.1VFrequency response20Hz-40kHz (-0.5dB)Total harmonic distotion more noise (THD+N)0.0003%Dynamic range123dBChannel separation122dBSignal-to-noise ratio (SNR)123dBNoise117dBXLR output specificationsOutput level4.2VFrequency response20Hz-40kHz (-0.5dB)Total harmonic distotion more noise (THD+N)0.0003%Dynamic range127dBChannel separation126dBSignal-to-noise ratio (SNR)127dBNoise114dB6.35mm headphone jack output specificationsOutput powerLow gain: 101mW @ 32Ω
High gain: 1620mW @ 32Ω
High gain: 252mW @ 300ΩFrequency response20Hz-40kHz (-0.5dB)Total harmonic distotion more noise (THD+N)0.003%Dynamic range121dBChannel separation69dBSignal-to-noise ratio (SNR)120dBNoise112dBOutput impedance3.3ΩGeneralDimensions320 x 240 x 62mmWeight5.7kgColorBlackPackage1x Shanling ONIX Zenith XDA20
1x Remote control
1x Power cable
1x USB cable
