SKU: 002328

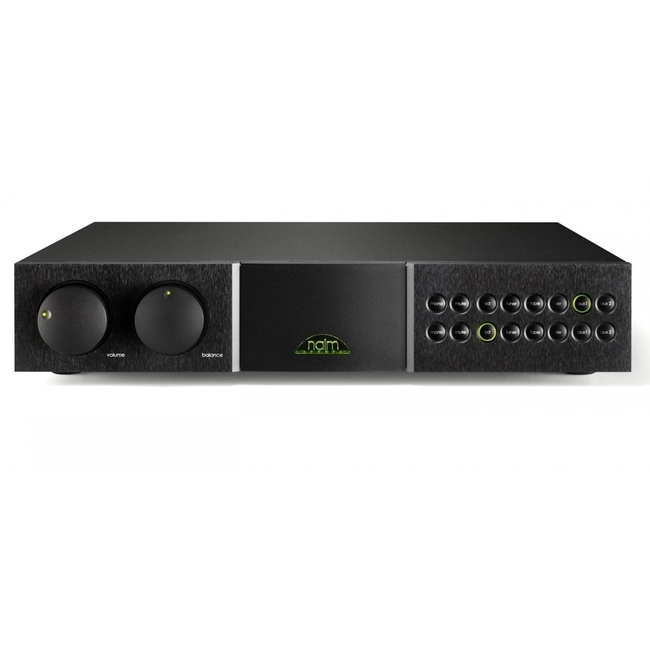

Naim NAC 252
Analogue Outputs 1 x variable, 3 x fixed (DIN)Line Outputs Fixed (level) 75mV, 600ΩLine Outputs Variable (level) 775mV
Out of stock
€8.490,00
Final Price
Do you have any questions or want to place a phone order?
Call us at 2109401167
Buy Now Pay Later with the use of a debit card
We support installment purchases using a debit card. For details call us Phone
Enter your postal code so we can inform you about shipping/delivery options.
After Sales Support
Supplier guarantee up toYears
Next to you since 1976
Over 46 years of experience!
Join us
Earn special offers
| AUDIO INPUTS | |
|---|---|
| Analogue Inputs | 4 x DIN, 2 x DIN, RCA |
| Input Sensitivity | 75mV |
| Input Impedance | 47kΩ |
| Other Inputs | AV input configurable for unity gain |
| AUDIO OUTPUTS | |
| Analogue Outputs | 1 x variable, 3 x fixed (DIN) |
| Line Outputs Fixed (level) | 75mV, 600Ω |
| Line Outputs Variable (level) | 775mV |
| Output Impedance | <50Ω |
| Minimum Load Impedance | 10kΩ |
| Power Outputs | Naim phono amplifier |
| CONNECTIVITY | |
| Infra Red | RC5 |
| Remote Input | RCA on rear (RC5) |
| RS232 | optional (DE9 female) |
| POWER | |
| Supply Voltage | 24V, 12V |
| Power Supply Options | SuperCap |
| PHYSICAL | |
| Dimensions | 87 x 432 x 314mm (H x W x D) |
| Weight | 7.0kg |
| FINISH | |
| Front | Brushed and black anodised |
| Case | Black powder coated |
