SKU: 005168

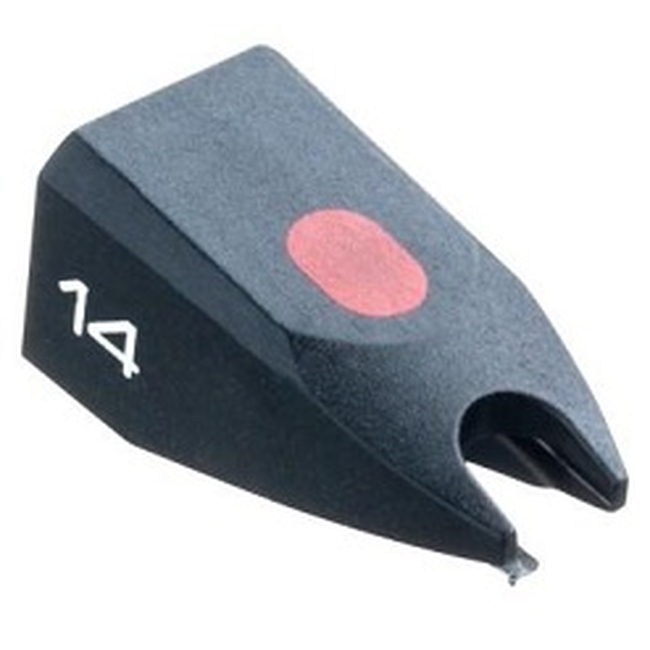

Ortofon stylus 14
Ortofon stylus 14 for TM 14U. ., ελλειπτική ανταλλακτική βελόνα κατάλληλη για την κεφαλή TM 14U της Ortofon
Upon Order - According to the supplier's warehouse
€69,00
Final Price
Add to cart
Do you have any questions or want to place a phone order?
Call us at 2109401167
Buy Now Pay Later with the use of a debit card
We support installment purchases using a debit card. For details call us Phone
Enter your postal code so we can inform you about shipping/delivery options.
Delivery option with BOX NOW
After Sales Support
Supplier guarantee up toYears
Next to you since 1976
Over 46 years of experience!
Join us
Earn special offers
o
| Technical data | |
| Frequency range | 20-22.000 Hz |
| Frequency response | 20-20.000 Hz + 2 / - 2 dB |
| Tracking ability at 315Hz at recommended tracking force *) | 70 µm |
| Compliance, dynamic, lateral | 25 µm/mN |
| Stylus type | Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Equivalent stylus tip mass | 0,5 mg |
| Tracking force range |
1,0-1,5 g (10-15 mN) |
| Tracking force, recommended | 1,25 g (12,5 mN) |
| Tracking angle | 20° |
| Stylus colour | Black |
| Recommended for following cartridges | TM 14U |
