SKU: 76289

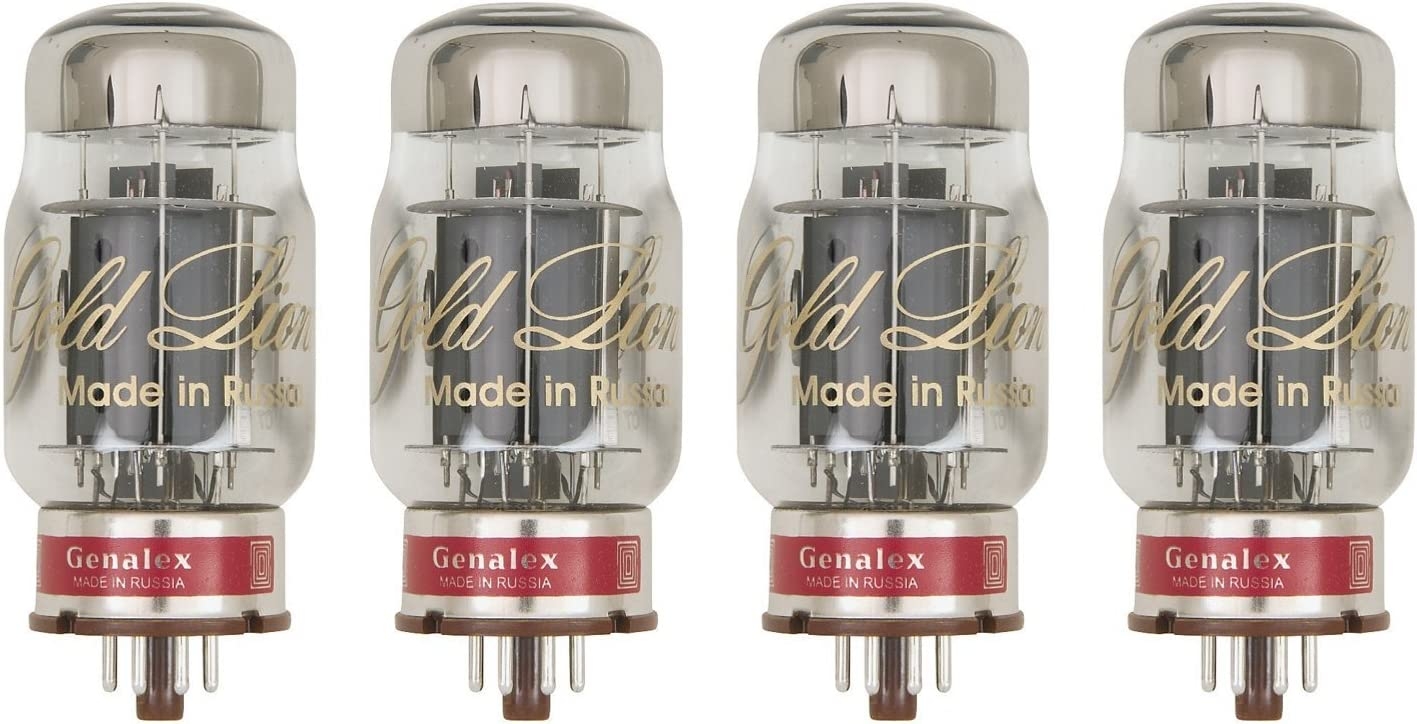

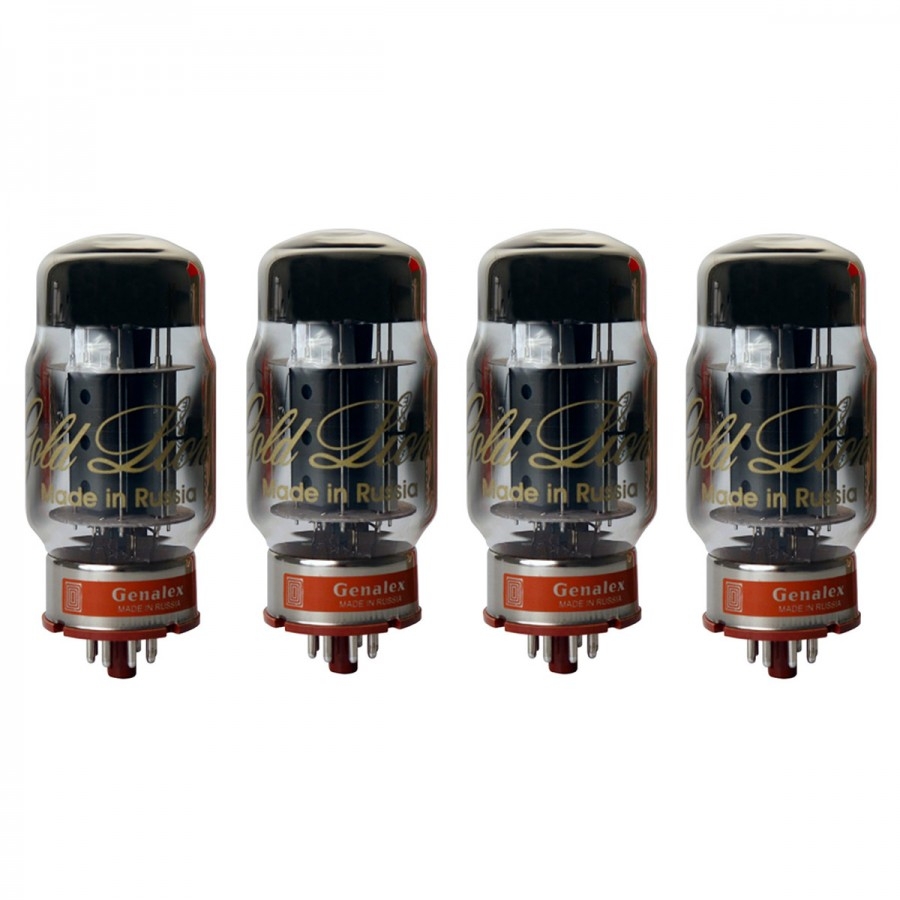

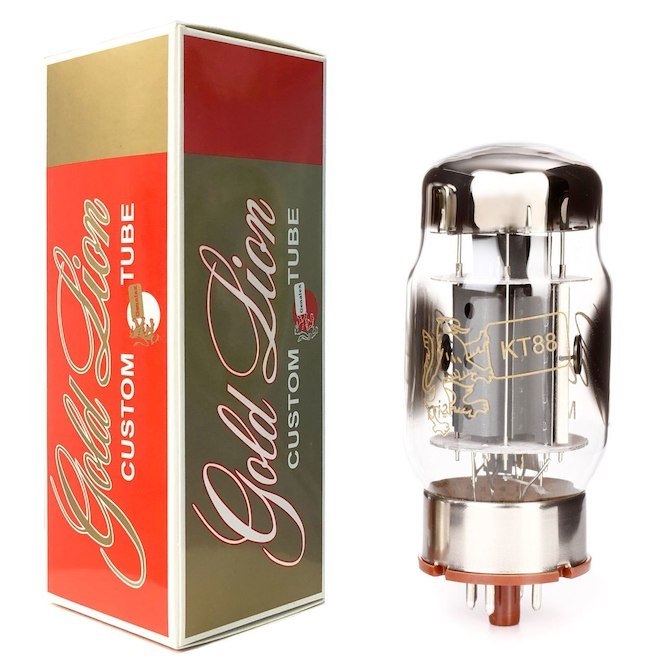

Genalex Gold Lion KT88 Matched Quad (Σετ 4 τεμ.)
Αυτή η λυχνία KT88 Gold Lion της Genalex είναι τετροειδής με ισοδυναμική κάθοδο και έχει σχεδιαστεί κυρίως για την ενίσχυση χαμηλών συχνοτήτων σε ένα στάδιο εξόδου. Διαθέτει επιχρυσωμένα πλέγματα. Αποτελεί ένα εξαιρετικό ισοδύναμο της λυχνίας 6550.
Upon Order - According to the supplier's warehouse
€434,80
Final Price
Add to cart
Do you have any questions or want to place a phone order?
Call us at 2109401167
Buy Now Pay Later with the use of a debit card
We support installment purchases using a debit card. For details call us Phone
Enter your postal code so we can inform you about shipping/delivery options.
After Sales Support
Supplier guarantee up toYears
Next to you since 1976
Over 46 years of experience!
Join us
Earn special offers
| Measurements | |||
|---|---|---|---|
| Parameter | Conditions | Min. | Max |
| First grid reverse current | Filament voltage 6.3V, plate voltage 400V, grid 1 voltage16.5V, grid 225V, resistance circuit grid 1 0.051MΩ | - | 0.7µA |
| Heater current | - | 1.5A | 1.7A |
| Plate current | Filament voltage 6.3V, plate voltage 400V, grid 1 voltage 16.5V, grid 2 voltage 225V | 75mA | 125mA |
| Grid 2 current | Filament voltage 6.3V, plate voltage 400V, grid 1 voltage 16.5V, grid 2 voltage 225V | 2mA | 9.5mA |
| Output power | Filament voltage 6.3V, plate voltage 400V, grid 1 voltage 16.5V, grid 2 voltage 225V, plate circuit resistance 3kΩ | 14W | - |
| First grid cut-off voltage, negative | Filament voltage 6.3V, plate voltage 400V, grid 1 voltage 16.5V, grid 2 voltage 225V | - | 58V |
| Distortion | Filament voltage 6.3V, plate voltage 400V, grid 1 voltage 16.5V, grid 2 voltage 225V | - | 18% |
| Specifications | ||
|---|---|---|
| Product type | Tetrode tubnes | |
| Number of pins | 7 | |
| Application | Low frequency amplification in output stage | |
| Quantity | Four matched tubes | |
