The Shanling CT90 is a high-fidelity CD transport. It is based on a Sanyo DA11 playback system and a SAA7826 decoder for the most faithful reproduction. It supports high-resolution streams up to PCM 32bit 768kHz, DSD512, and MQA-CD with upsampling. In addition, it features Bluetooth 5.0 with support for high-resolution AAC, SBC, aptX, aptX HD, and LDAC codecs. The modern Eddict Player app also allows you to fully control the CT90. In terms of connectivity, there is a USB-B transport input, as well as numerous digital outputs, including an I2S LVDS output via HDMI. A BNC input also offers the possibility of using an external clock. The whole unit is powered by a 35W linear power supply consisting of an audiophile-grade toroidal transformer.

Shanling CT90: MQA-CD support

The Shanling CT90 supports the MQA format with various options. It offers full support (4x), basic support (2x), and an MQA source mode to adapt to the DAC that would come next in the audio chain.

Specifications

Product type:  CD transport

Reading system:  DA11 read head + SA7826 servo

Compatible disc formats:  CD, CD-R, CD-RW

Inputs:

CD

1x USB-B

1x USB-A (HOST)

Bluetooth

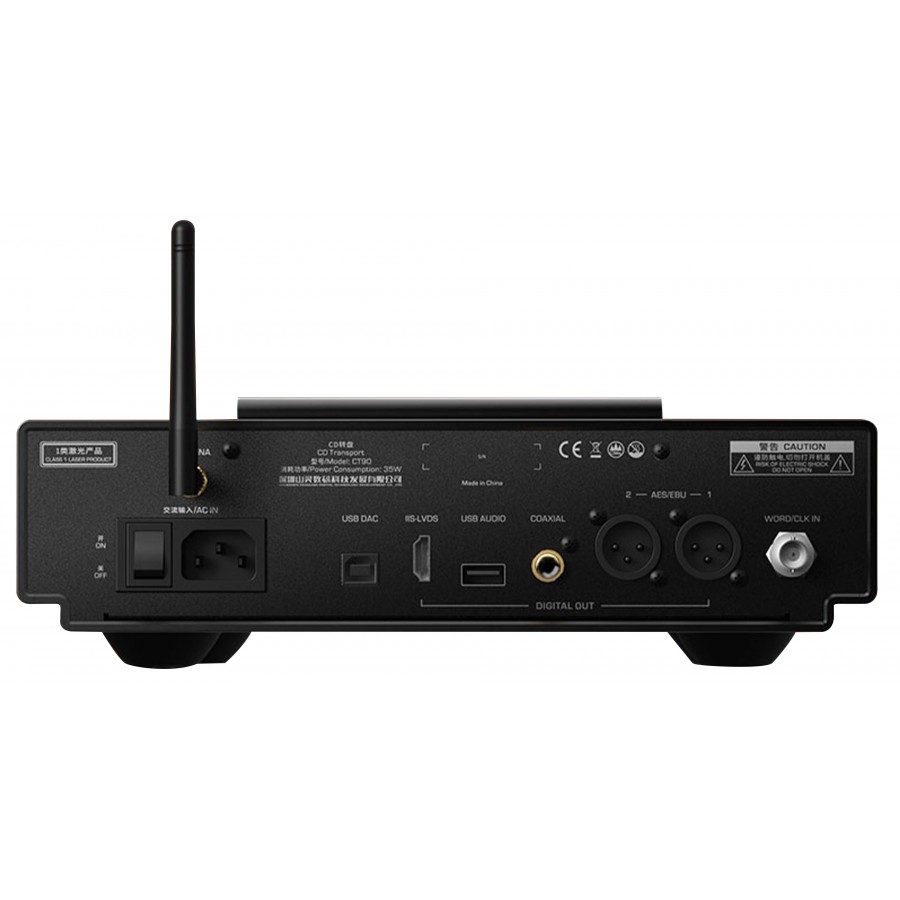

Outputs:

1x I2S LVDS via HDMI

1x USB-A

1x Coaxial

2x AES/EBU

Other exemple:  BNC for external clock

Supported sampling rate:

USB: up to PCM 32bit 768 kHz, DSD up to DSD512 (upsampling not supported)

I2S: PCM up to 32bit 768 kHz, DSD up to DSD512

Coaxial and AES/EBU: PCM up to 24bit 192kHz, DSD DoP64

Supported Bluetooth codecs:  AAC, SBC, AptX, AptX HD et LDAC

USB Drive audio format support  DSD (.iso*, .dsf, .dff)

ISO/DXD/APE/FLAC/WAV/AIFF/AIF/DTS/MP3/WMA/AAC/OGG/ALAC/MP2/M4A/AC3/M3U/M3U8/OPUS

Power supply:  100-240V AC

Dimensions:  28 x 23 x 9.1cm (including top cover and feet)

Weight:  3.5kg

Package:

1x Shanling CT90

1x AC power cable
