Shanling UA Mini (6972835392756)
Extra Power, Smaller Body
Το Shanling UA Mini είναι ένα μικρό και ελαφρύ USB DAC/AMP που προσφέρει εντυπωσιακή απόδοση ήχου σε έναν κομψό, φορητό σχεδιασμό.
Με βάρος μόλις 8,4 g, είναι ένα από τα ελαφρύτερα DAC στη σειρά της Shanling, ωστόσο προσφέρει ενισχυμένη έξοδο ισχύος για να οδηγείτε με ευκολία απαιτητικά ακουστικά.
We support installment purchases using a debit card. For details call us Phone
After Sales Support
Supplier guarantee up toYears
Next to you since 1976
Over 46 years of experience!
Join us
Earn special offers
Extra Power, Smaller Body

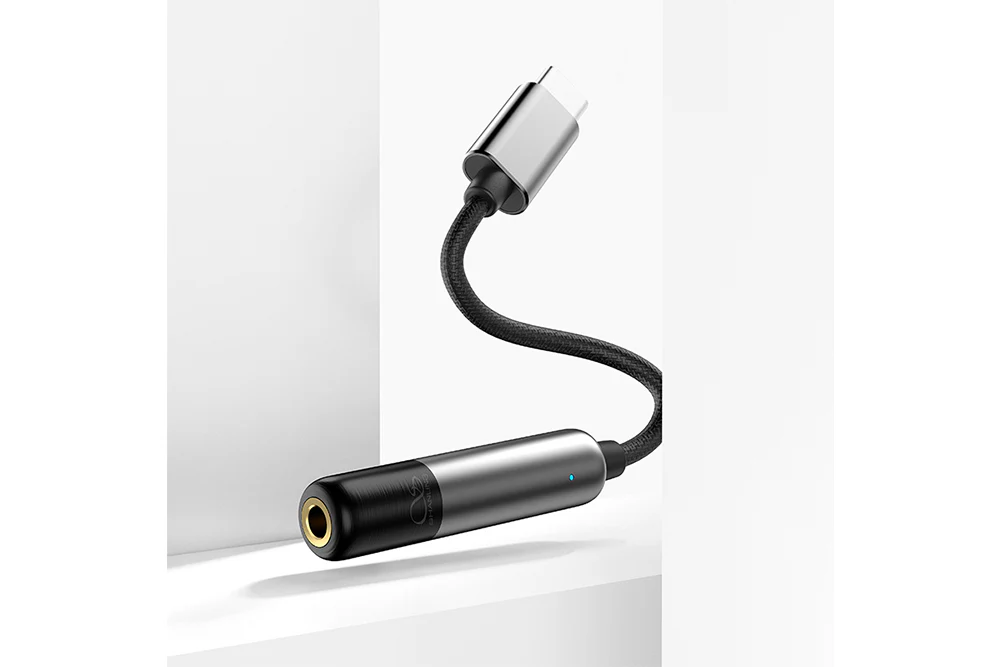

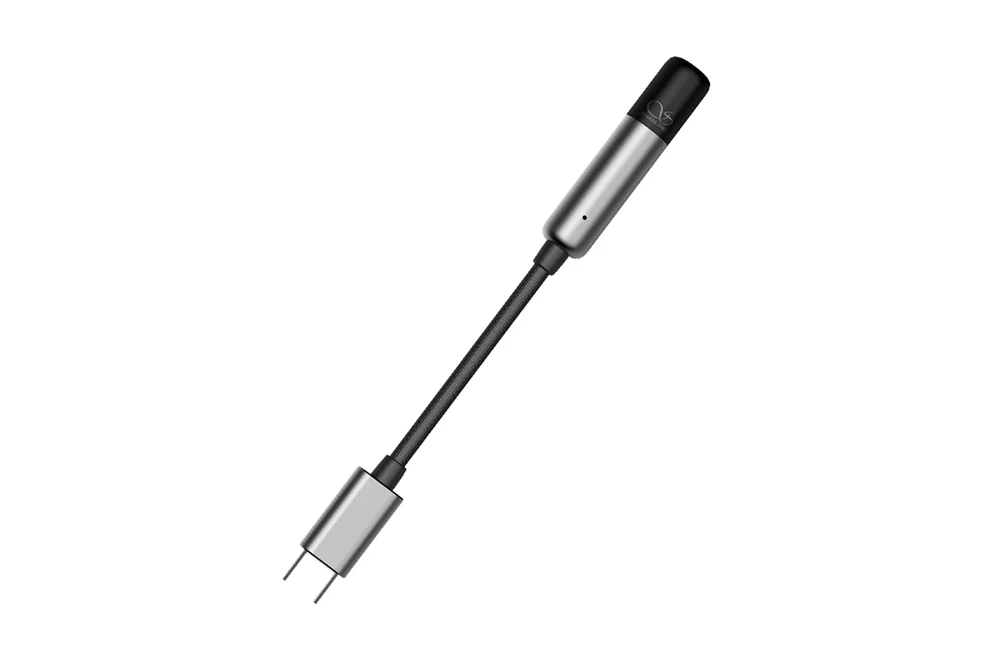

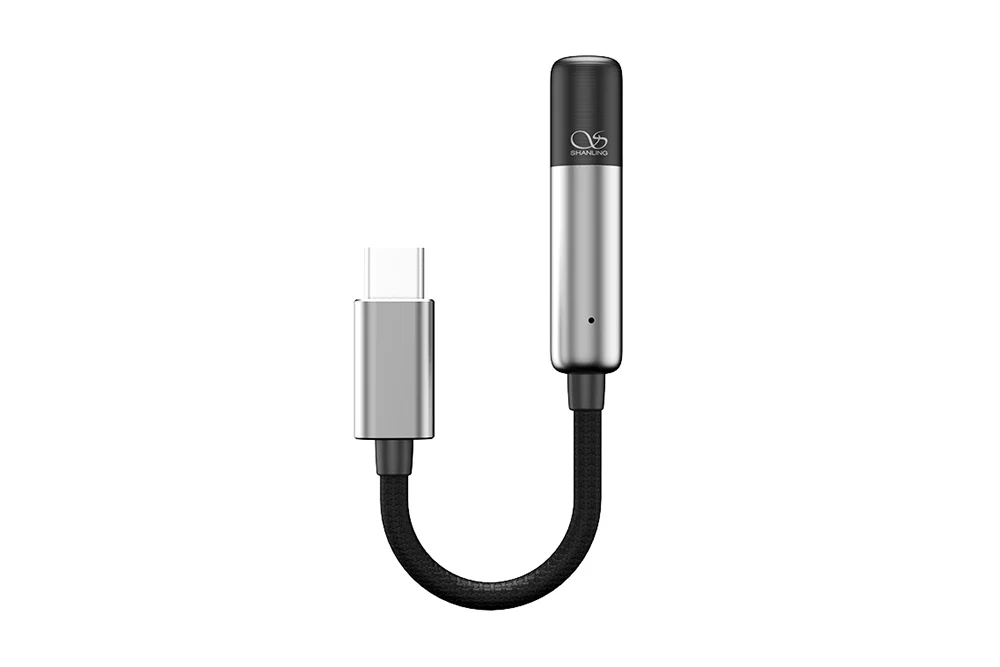

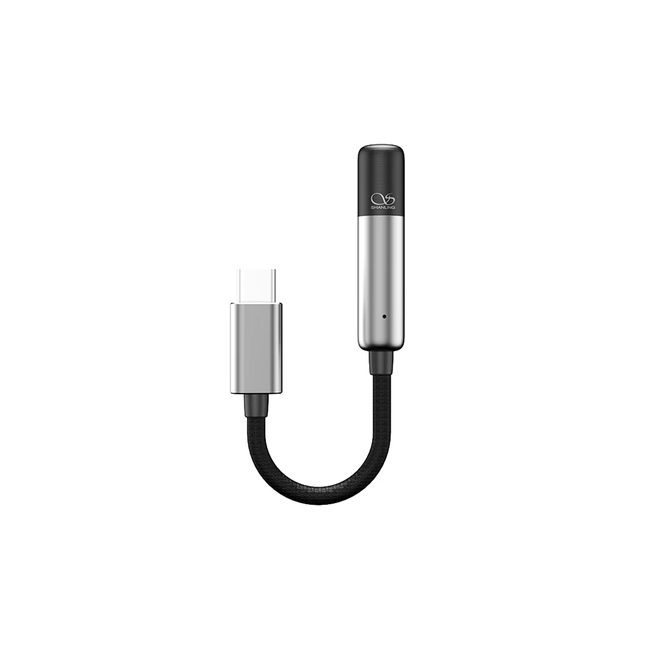

The Shanling UA Mini is a compact and lightweight USB DAC/AMP that delivers impressive audio performance in a sleek, portable design. Weighing just 8.4g, it’s one of the lightest DACs in Shanling’s lineup, yet it offers enhanced power output for driving demanding headphones with ease.
Cirrus Logic CS43131: Neutral & Detailed DAC
Equipped with the Cirrus Logic CS43131 DAC, the UA Mini provides a neutral, detailed sound that audiophiles love. With an impressive signal-to-noise ratio of 126dB, it delivers excellent audio clarity and accuracy.
SGM8262 Op-Amp: Enhanced Headphone Output
Featuring the SGM8262 op-amp, the UA Mini offers a more robust headphone output, providing enhanced power and driving capacity compared to previous Shanling budget models. This ensures better performance with a wider range of headphones.
Savitech SA9312: High-Performance USB Chip
The Savitech SA9312 USB chip ensures smooth data transfer and low-noise USB communication between your device and the DAC, guaranteeing a seamless and stable connection.
Ultra-Low Noise Output: Clean Background
Designed with a focus on portable audio and sensitive earphones, the UA Mini delivers ultra-low noise output, providing a black background with no audible hiss or distortion, even in demanding listening situations.
Universal USB-C Connection: Wide Device Compatibility
The UA Mini uses a standard USB-C connection, making it universally compatible with Android, iOS, and Windows devices. The durable cable, made of silver-plated copper, ensures a pure signal transmission with minimal loss.

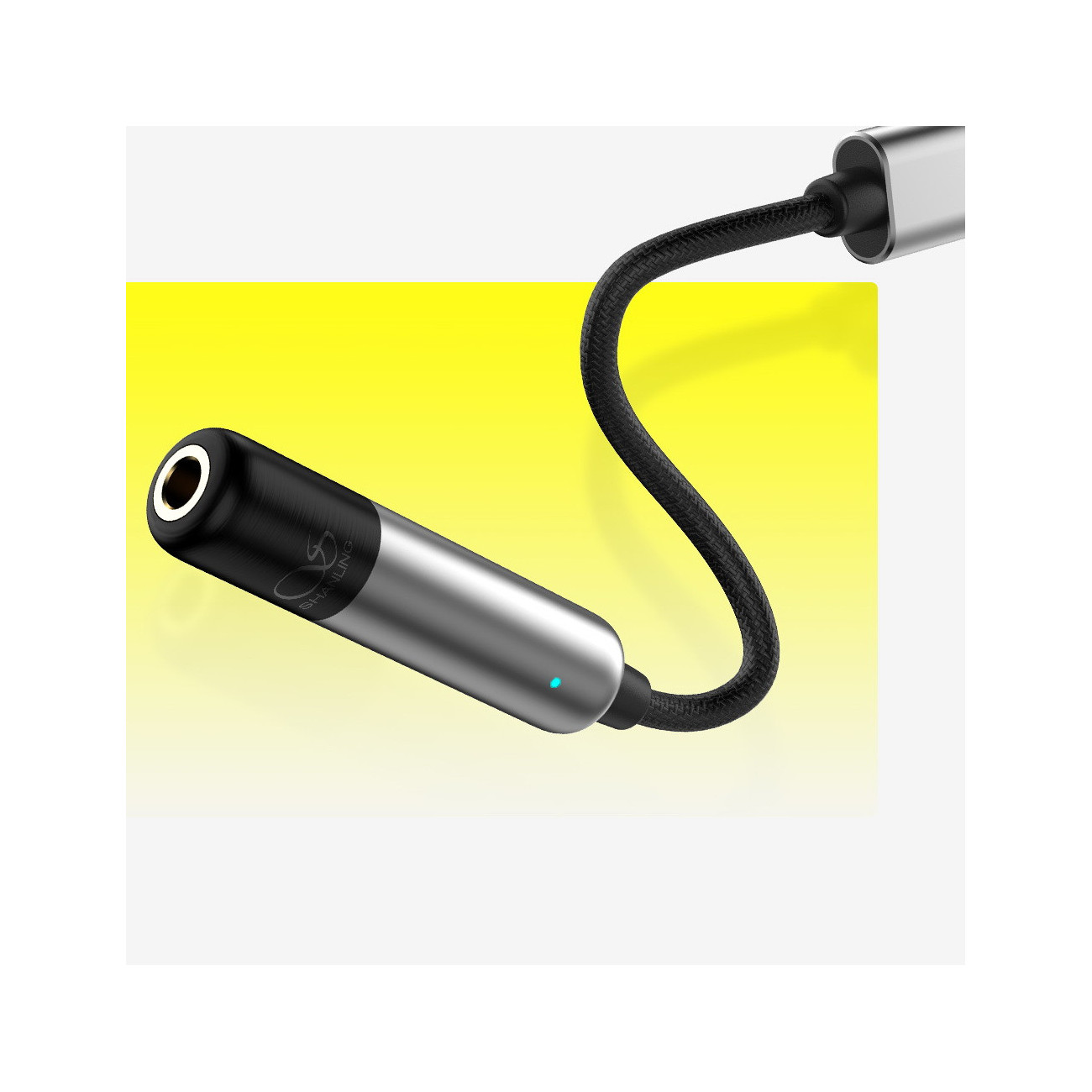

RGB LED Playback Indicator
The built-in RGB LED indicator displays a range of colors, showing the current sampling rate or DSD playback during audio playback.
Specifications:
Weight: about 8.4g
Headphone jack: 3.5mm
Plug: Type-C USB cable plug
USB chip: Savitech SA9312
DAC chip: Cirrus Logic cs43131
Op amp chip: SGM8262-2
PCM specification: 44.1-384kHz/32bit
DSD specification: DSD64-DSD256
Output power: (32QTHD+N<1%)L+R=205mW+205mW
Output power: (16QTHD+N<1%)L+R=260mW+260mW
SNR 126dB (32Ω load/A weighting)
DNR 126dB (32Ω load/A weighted)
THD+N: 0.0004% (-3dB@32 load)
Noise floor: 1.4μV (A weighted)
Frequency response: ±0.2dB (20-20kHz)
