Shanling Onix Mystic XP1
Portable Headphone Amplifier DAC 2x AK4499EX TPA6120A2 XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512
Shanling's Mystic XP1 is a state-of-the-art portable amplifier and DAC capable of converting signals up to PCM 32 bit 768kHz and DSD512. It has been designed to follow you everywhere and adapt to every situation, from driving small earphones when you're on the move to more demanding headphones for sedentary use.
Shanling Mystic XP1: Cutting-edge hardware
The Mystic XP1 is based on a pair of AKM AK4499EX DAC chips combined with their AK4191 delta-sigma modulators for a conversion with formidable resolution and natural timbre. The amplifier stage benefits from a purely symmetrical design and is based on Texas Instrument's TPA6120A2 chip, specially optimised for headphone amplification. Furthermore, the balanced line output is equipped with an additional Muses8920 chip so that the Mystic XP1 can also act as a preamplifier. Finally, the whole package is completed by the 'Brighton' I/V conversion stage developed in-house by the brand.
We support installment purchases using a debit card. For details call us Phone
After Sales Support
Supplier guarantee up toYears
Next to you since 1976
Over 46 years of experience!
Join us
Earn special offers
Portable Headphone Amplifier DAC 2x AK4499EX TPA6120A2 XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512
Shanling's Mystic XP1 is a state-of-the-art portable amplifier and DAC capable of converting signals up to PCM 32 bit 768kHz and DSD512. It has been designed to follow you everywhere and adapt to every situation, from driving small earphones when you're on the move to more demanding headphones for sedentary use.
Shanling Mystic XP1: Cutting-edge hardware
The Mystic XP1 is based on a pair of AKM AK4499EX DAC chips combined with their AK4191 delta-sigma modulators for a conversion with formidable resolution and natural timbre. The amplifier stage benefits from a purely symmetrical design and is based on Texas Instrument's TPA6120A2 chip, specially optimised for headphone amplification. Furthermore, the balanced line output is equipped with an additional Muses8920 chip so that the Mystic XP1 can also act as a preamplifier. Finally, the whole package is completed by the 'Brighton' I/V conversion stage developed in-house by the brand.
Specifications:
Product type
Portable headphone amplifier and DAC
Amplification chips
TPA6120A2
MUSES8920
DAC chip
2x AK4499EX
USB interface
XMOS XU316

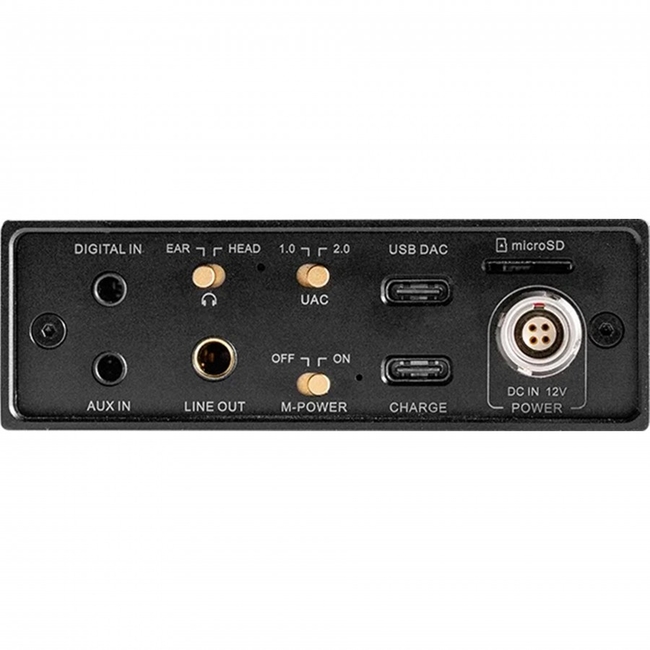

Inputs
1x SPDIF Coaxial / Optical Mini-Toslink combo input
1x Jack 3.5mm
1x USB-C
1x MicroSD
Bluetooth

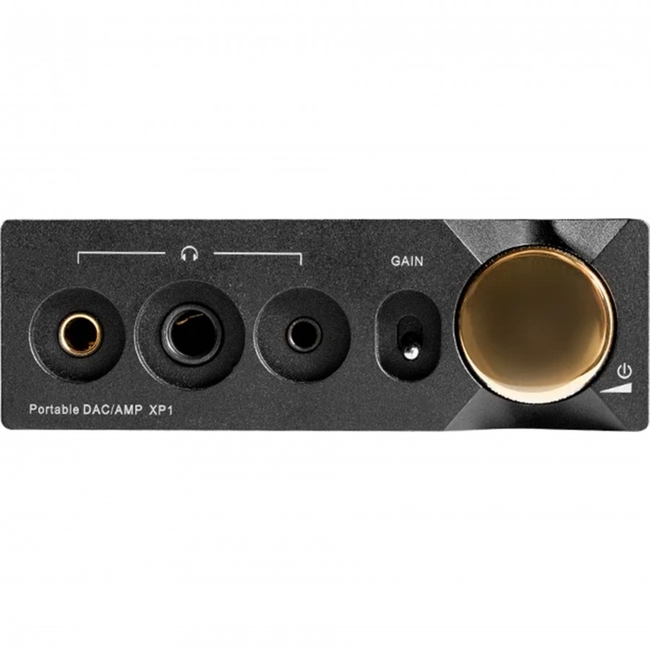

Outputs
1x Balanced 4.4 mm Jack line output
1x Balanced 4.4 mm Jack headphone output
1x Single-ended 3.5mm >Jack headphone output
1x Single-ended 6.5mm jack headphone output
Bluetooth 5.0
Supported sampling rates
PCM up to 32bit 768kHz
DSD up to DSD512
Supported Bluetooth codecs
LDAC / aptX HD / aptX / SBC / AAC
Gain levels
2x 3 levels (earphone mode and headphone mode)
Battery 7000mAh
Autonomy Up to 10h
Output power
Single-ended: 2.6V @ 32Ω THD+N ≤ 0.023%
Single-ended with external power supply: 5.1V @ 32Ω THD+N ≤ 1%
Balanced: 4.9V @ 32Ω THD+N ≤ 0.01%
Balanced with external power supply: 8.7V @ 32Ω THD+N ≤ 1%
Output impedance
4.7Ω
Frequency response
20Hz-40kHz (-0.5dB)
Dynamic range
120dBC
Signal-to-noise ratio
120dB
General:
Dimensions 160 x 92 x 30mm
Weight 583g
Package:
1x Shanling Mystic XP1
1x Jack 3.5mm to coaxial cable
1x USB-C to USB-C cable
1x USB-A to USB-C cable
