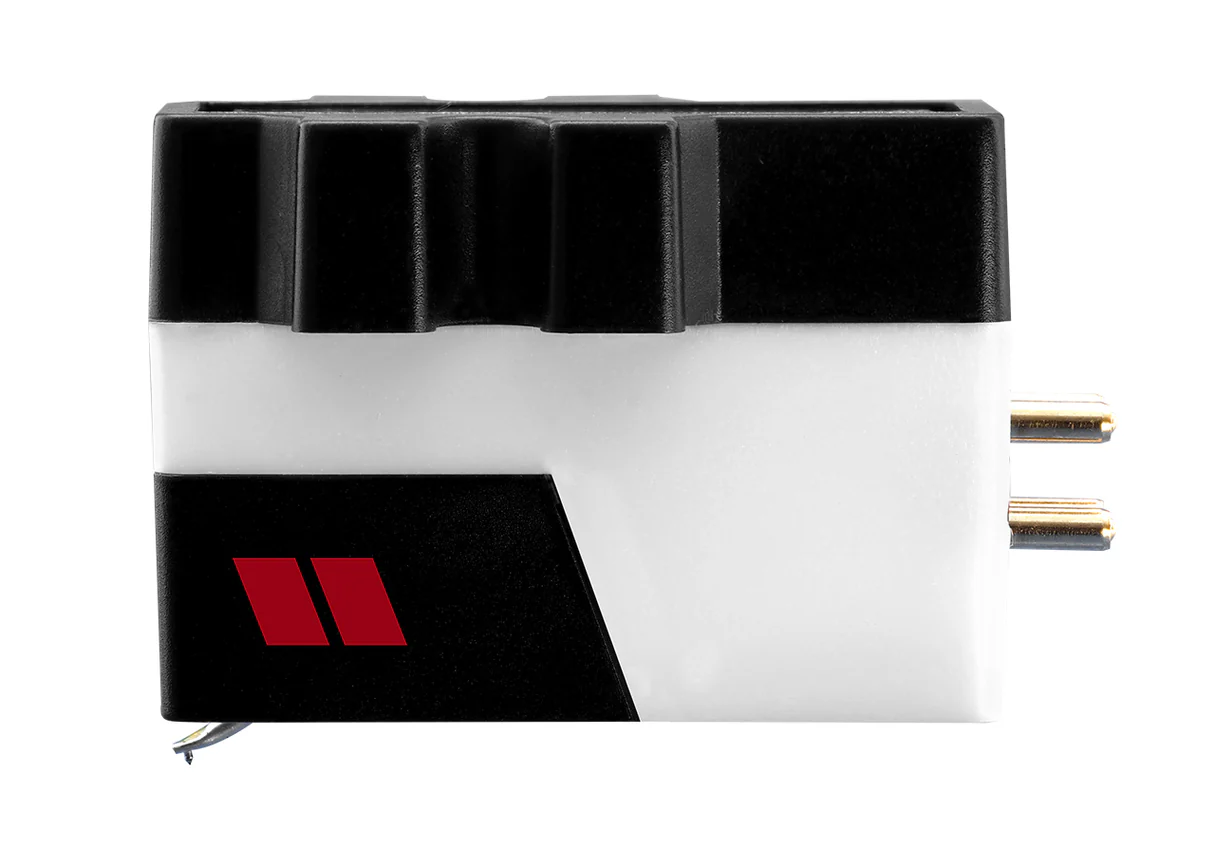

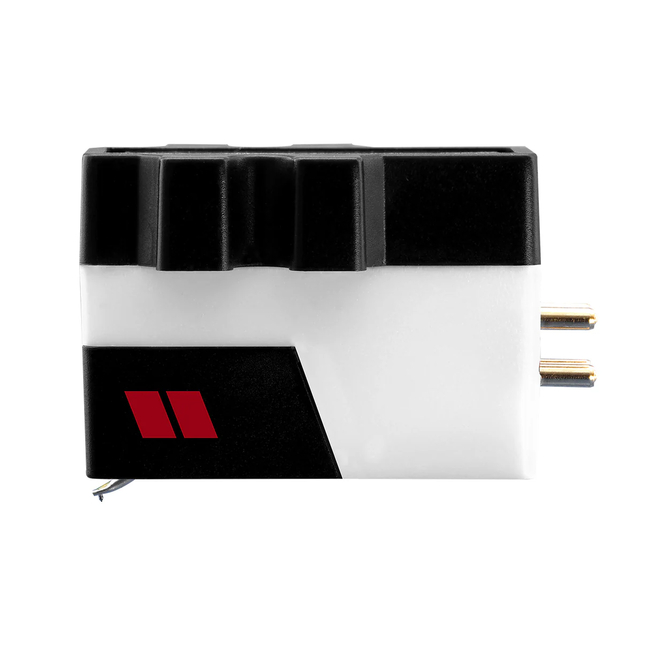

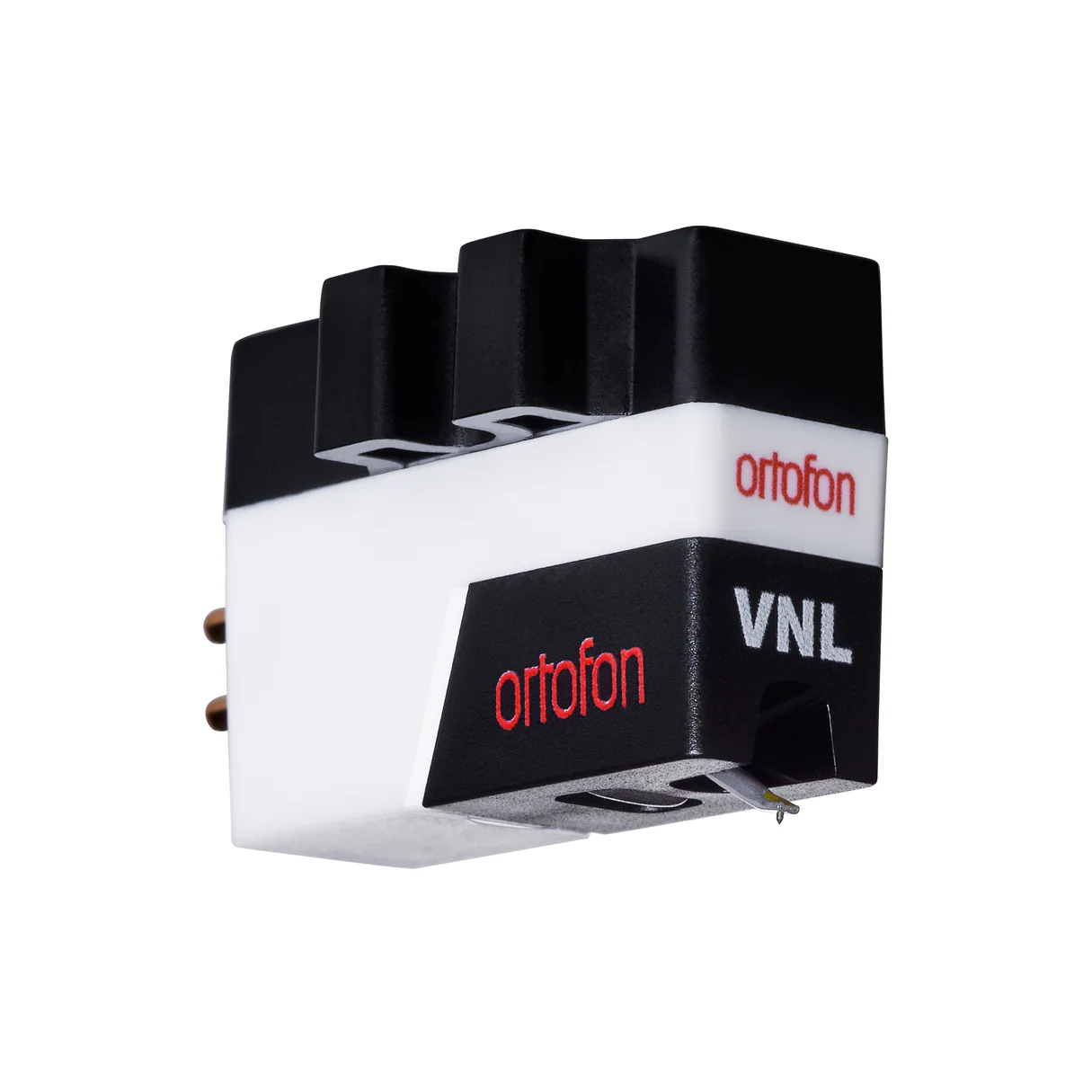

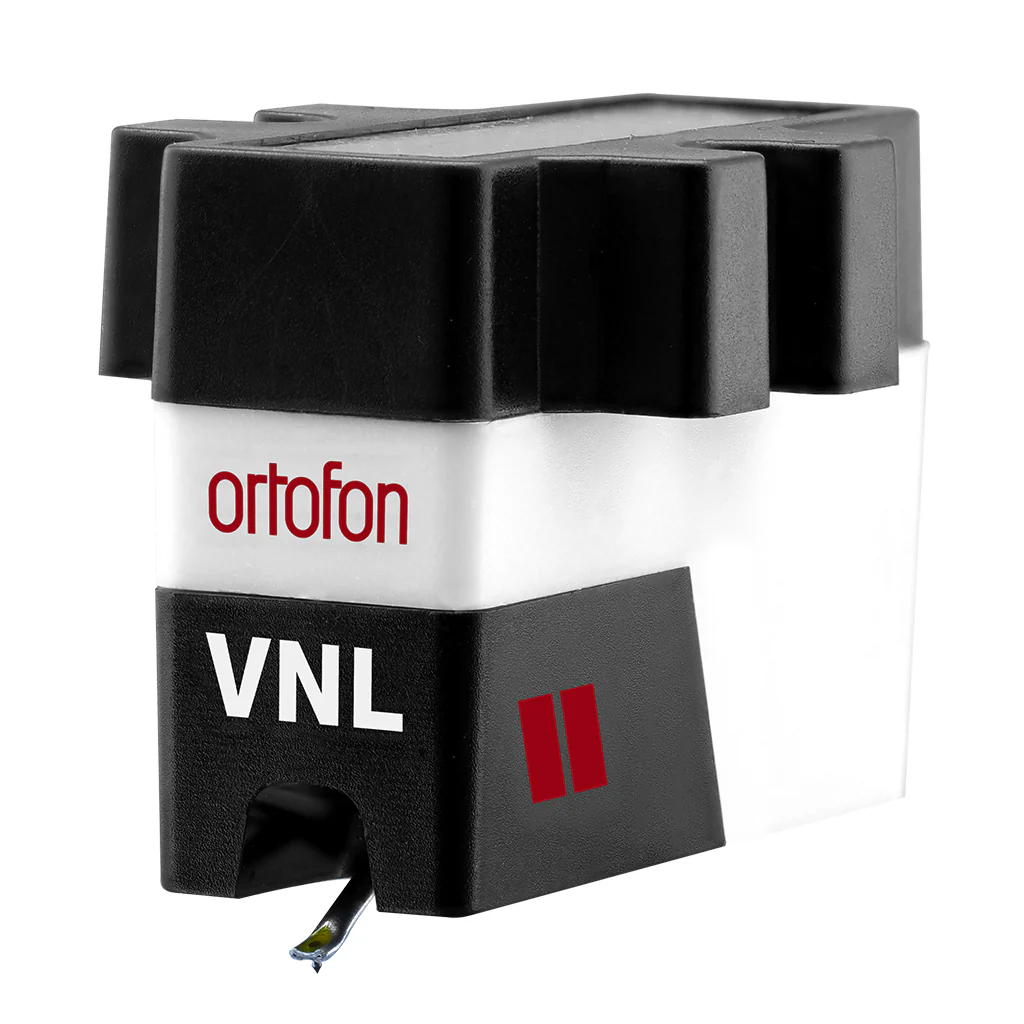

Ortofon VNL dj cartridge
The VNL comes with the VNL II stylus pre-mounted on the VNL cartridge body. Amidst its exceptional performance, the VNL represents the synergy of innovation and craftsmanship.
Διαθέσιμο στην αποθήκη - Αποστολή / Παραλαβή σε 4-10 εργάσιμες μέρες
€99,00
Final Price
Add to cart
Do you have any questions or want to place a phone order?
Call us at 2109401167
Buy Now Pay Later with the use of a debit card
Details
We support installment purchases using a debit card. For details call us Phone
Enter your postal code so we can inform you about shipping/delivery options.
After Sales Support
Supplier guarantee up toYears
Next to you since 1976
Over 46 years of experience!
Join us
Earn special offers
For turntablist and portablists
VNL
Among skilled DJs, the need for specialized tools is ongoing, driving their creative journey toward innovation's edge. These DJs consistently seek to expand performance boundaries and discover fresh artistic dimensions.
Building on this understanding and drawing from our extensive experience in industrial design and technology, we introduce the Ortofon VNL cartridge. Carefully designed to meet the demands of modern turntablists and portablists, the VNL stands as a testament to our commitment to pushing limits and reshaping possibilities.
The VNL comes with the VNL II stylus pre-mounted on the VNL cartridge body.
Versatile styli options
Rubber suspension
To align with the diverse demands of contemporary DJs, the VNL cartridge offers interchangeability with three distinct styli, each equipped with suspension types of varying feel and rigidity:
Stylus VNL I: Compliance, Dynamic Lateral 16 μm/m N - Flexible
Stylus VNL II: Compliance, Dynamic Lateral 15 μm/m N - Rigid
Stylus VNL III: Compliance, Dynamic Lateral 14 μm/m N - Firm
Output voltage at 1 kHz, 5cm/sec: 6 mV
Channel separation at 1 kHz: 20 dB
Frequency response: 20 Hz – 20 kHz (–2 / +4 dB)
Tracking ability at 315 Hz: 90 µm
Compliance, dynamic, lateral: 15 µm/mN
Stylus type: Spherical
Stylus tip radius: R 18 µm
Tracking force range: 3 – 5 g
Tracking force, recommended: 4 g
Internal impedance (DC): 700 Ohm
Cartridge colour: White
Cartridge weight: 6.5 g
Premounted cartridge weight: 16.0 g
Recommended load resistance: 47 kOhm
Internal inductance: 450 mH
Recommended load capacitance: 47 kOhm
Replacement stylus: Stylus VNL
