SKU: 1800124

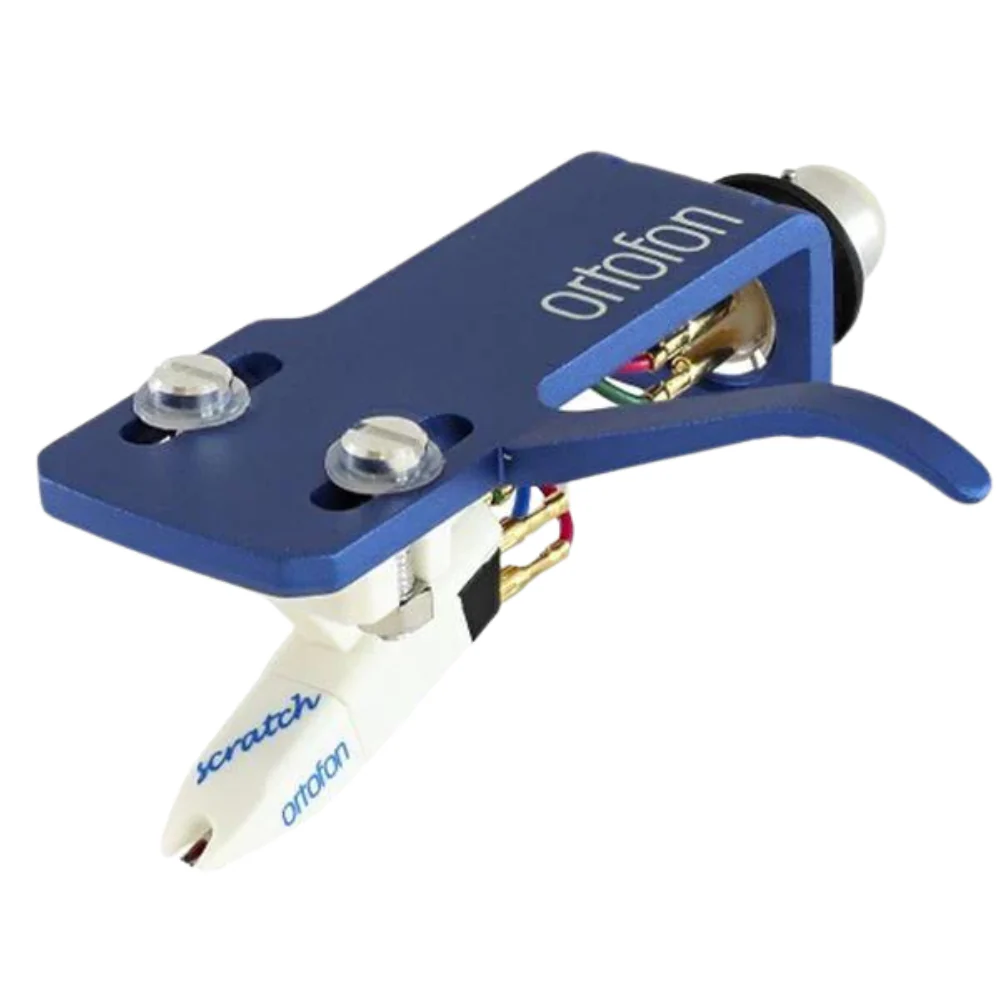

Ortofon OM SCRATCH White cartridge premounted on SH-4 Blue
The OM Scratch White on the SH-4 Black headshell is a practical and convenient solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm.
Διαθέσιμο στην Αποθήκη - Αποστολή / Παραλαβή σε 1-3 εργάσιμες μέρες
€139,00
Final Price
Add to cart
Do you have any questions or want to place a phone order?
Call us at 2109401167
Buy Now Pay Later with the use of a debit card
Details
We support installment purchases using a debit card. For details call us Phone
Enter your postal code so we can inform you about shipping/delivery options.
After Sales Support
Supplier guarantee up toYears
Next to you since 1976
Over 46 years of experience!
Join us
Earn special offers
OM Scratch White mounted on SH-4 Blue headshell
Features:
• Universal mount fitting a wide range of S-shaped tonearms
• Correct Baerwald alignment with the major part of tonearms with universal mount
• Increased tracking ability
• Reinforced rubber suspension
High output and maximum scratch performance guaranteed!
Channel balance at 1 kHz: 1.5 dB
Output voltage at 1 kHz, 5cm/sec: 7 mV
Channel separation at 1 kHz: 25 dB
Frequency response (20 Hz – 20 kHz): +3 dB / -2 dB
Tracking ability at 315 Hz: 80 μm
Compliance, dynamic, lateral: 6 μm/mN
Stylus type: Spherical
Stylus tip radius: R 18 μm
Tracking force range: 3.0 – 5.0 g (30–50 mN)
Tracking force, recommended: 4.0 g (40 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 750 Ohm
Cartridge weight: 5 g (incl. headshell: 18.5 g)
Recommended load resistance: 47 kOhm
Internal inductance: 450 mH
Recommended load capacitance: 200 – 600 pF
Replacement stylus: Stylus MFS
